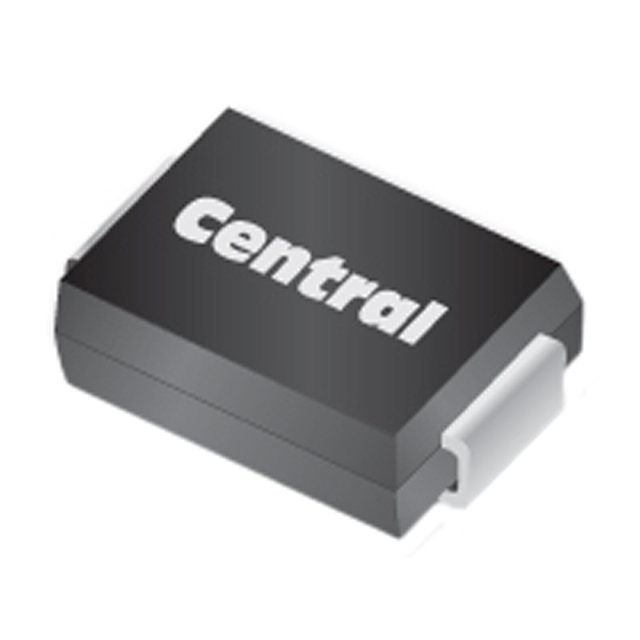

1SMC160CA TR13 PBFREE

Part Number
1SMC160CA TR13 PBFREE
Manufacturer Central Semiconductor
Other Part Numbers
1514-1SMC160CATR13PBFREETR-ND
1514-1SMC160CATR13PBFREEDKR
1SMC160CA TR13-CT-ND
1SMC160CATR13-CT-ND
1SMC160CA TR13-CT
1SMC160CATR13-CT
1SMC160CA TR13
1514-1SMC160CATR13PBFREECT
1SMC160CATR13-TR-ND
1SMC160CATR13-DKR
1SMC160CA TR13-DKR
1SMC160CATR13-TR
1SMC160CA TR13-TR
1514-1SMC160CATR13PBFREETR
1SMC160CA TR13-TR-ND
1SMC160CATR13-DKR-ND
1SMC160CA TR13-DKR-ND
Description TVS DIODE 160VWM 259VC SMC
Detailed Description 259V Clamp 5.8A Ipp Tvs Diode Surface Mount SMC
Manufacturer Standard Lead Time 18 weeks

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Type Zener
Operating Temperature -65°C ~ 150°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 5.8A
Voltage - Reverse Standoff (Typ) 160V
Supplier Device Package SMC
Bidirectional Channels 1
Voltage - Breakdown (Min) 178V
Voltage - Clamping (Max) @ Ipp 259V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets 1SMC160CA TR13 PBFREE
Datasheets RoHS Cert
Datasheets SMC 25-Mar-2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
