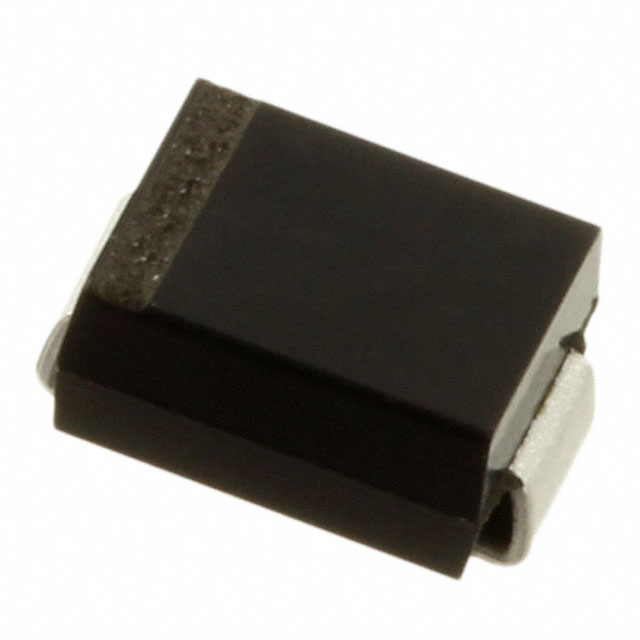

1SMB75CA TR13

1SMB75CA TR13

Part Number	1SMB75CA TR13
Manufacturer	Central Semiconductor
Other Part Numbers	1SMB75CATR13-TR-ND 1SMB75CA TR13 PBFREE 1SMB75CA TR13-CT 1SMB75CA TR13-CT-ND 1SMB75CA TR13-DKR 1SMB75CA TR13-DKR-ND 1SMB75CATR13-TR 1SMB75CA TR13-TR-ND 1SMB75CATR13-CT 1SMB75CATR13-DKR 1SMB75CA TR13-TR
Description	TVS DIODE 75VWM 121VC SMB
Detailed Description	121V Clamp 4.9A Ipp Tvs Diode Surface Mount SMB

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		DO-214AA, SMB
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-65°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		4.9A
Voltage - Reverse Standoff (Typ)		75V
Supplier Device Package		SMB
Bidirectional Channels		1
Voltage - Breakdown (Min)		83.3V
Voltage - Clamping (Max) @ Ipp		121V
Power - Peak Pulse		600W
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1SMB75CA TR13
Datasheets		RoHS Cert
Datasheets		SMB 07-Apr-2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
