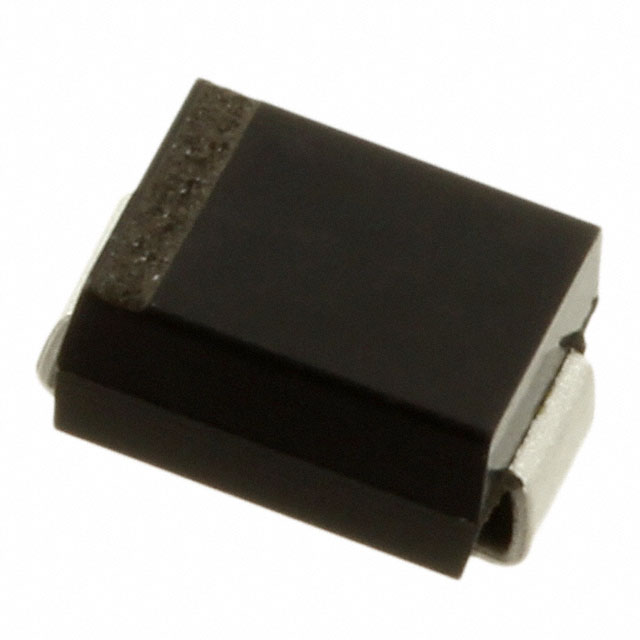

1SMB5.0A TR13 PBFREE

1SMB5.0A TR13 PBFREE

Part Number	1SMB5.0A TR13 PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1SMB5.0ATR13PBFREETR-ND 1514-1SMB5.0ATR13PBFREECT-ND 1514-1SMB5.0ATR13PBFREEDKR-ND 1SMB5.0A TR13-DKR 1514-1SMB5.0ATR13PBFREETR 1SMB5.0A TR13-DKR-ND 1SMB5.0ATR13-CT-ND 1SMB5.0A TR13-TR-ND 1SMB5.0A TR13-CT 1SMB5.0A TR13-CT-ND 1SMB5.0ATR13-TR 1SMB5.0ATR13-TR-ND 1SMB5.0ATR13-DKR 1SMB5.0ATR13-CT 1514-1SMB5.0ATR13PBFREECT 1514-1SMB5.0ATR13PBFREEDKR 1SMB5.0A TR13-TR 1SMB5.0A TR13 1SMB5.0ATR13-DKR-ND
Description	TVS DIODE 5VWM 9.2VC SMB
Detailed Description	9.2V Clamp 65.2A Ipp Tvs Diode Surface Mount SMB
Manufacturer Standard Lead Time	20 weeks

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		DO-214AA, SMB
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-65°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		65.2A
Voltage - Reverse Standoff (Typ)		5V
Supplier Device Package		SMB
Unidirectional Channels		1
Voltage - Breakdown (Min)		6.4V
Voltage - Clamping (Max) @ Ipp		9.2V
Power - Peak Pulse		600W
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1SMB5.0A TR13 PBFREE
Datasheets		RoHS Cert
Datasheets		SMB 07-Apr-2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 17694

Can ship immediately.
