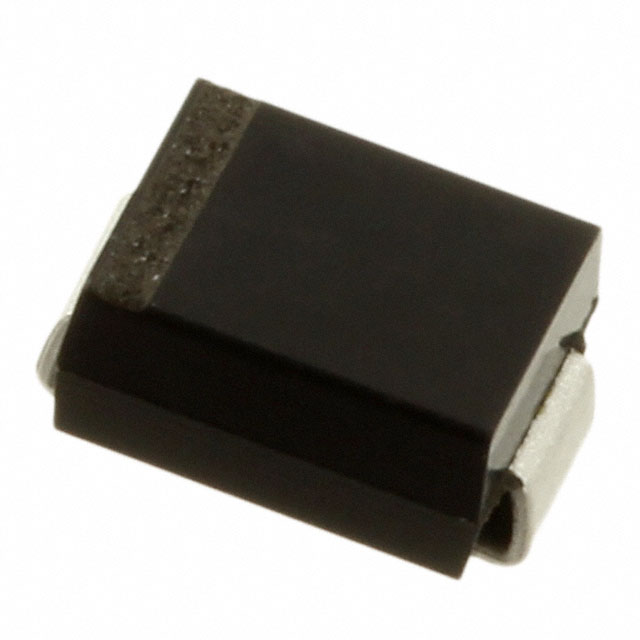

1SMB15A TR13 PBFREE

Part Number
1SMB15A TR13 PBFREE
Manufacturer Central Semiconductor
Other Part Numbers
1514-1SMB15ATR13PBFREETR-ND
1514-1SMB15ATR13PBFREECT-ND
1514-1SMB15ATR13PBFREEDKR-ND
1SMB15A TR13
1SMB15A TR13-CT
1SMB15ATR13-CT
1SMB15A TR13-DKR
1SMB15A TR13-DKR-ND
1SMB15ATR13-TR-ND
1514-1SMB15ATR13PBFREECT
1SMB15A TR13-CT-ND
1SMB15ATR13-CT-ND
1SMB15A TR13-TR
1SMB15ATR13-DKR-ND
1SMB15A TR13-TR-ND
1514-1SMB15ATR13PBFREETR
1SMB15ATR13-TR
1514-1SMB15ATR13PBFREEDKR
1SMB15ATR13-DKR
Description TVS DIODE 15VWM 24.4VC SMB
Detailed Description 24.4V Clamp 24A Ipp Tvs Diode Surface Mount SMB
Manufacturer Standard Lead Time 20 weeks

Product Attributes

Category
Manufacturer Central Semiconductor
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case DO-214AA, SMB
Mounting Type Surface Mount
Type Zener
Operating Temperature -65°C ~ 150°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 24A
Voltage - Reverse Standoff (Typ) 15V
Supplier Device Package SMB
Unidirectional Channels 1
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 24.4V
Power - Peak Pulse 600W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets 1SMB15A TR13 PBFREE
Datasheets RoHS Cert
Datasheets SMB 07-Apr-2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
