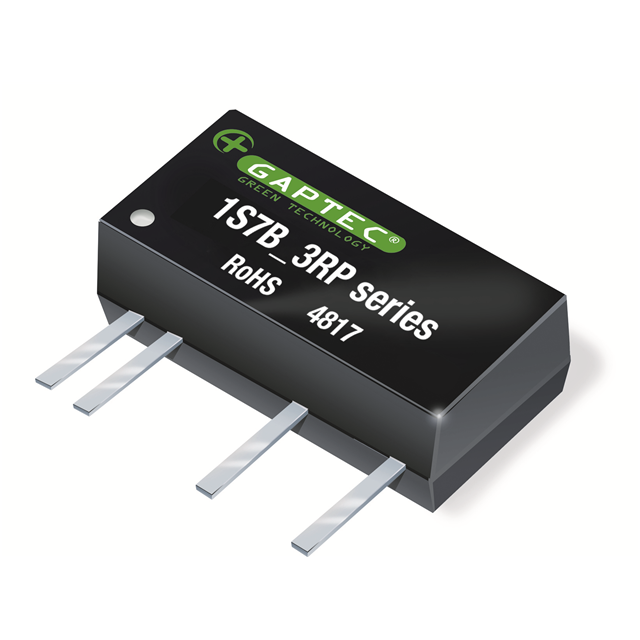

1S7B_0505S3RP _ DC DC Converters_Power Supplies

Part Number	1S7B_0505S3RP
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-1S7B_0505S3RP-ND 3182-1S7B_0505S3RP
Description	ISOLATED MODULE DC DC CONVERTERS
Detailed Description	Isolated Module DC DC Converter 1 Output 5V 200mA 4.75V - 5.25V Input
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		GAPTEC Electronic
Series		1S7B_3RP (1W)
Packaging		Tube
Part Status		Active
Package / Case		7-SIP Module, 4 Leads
Size / Dimension		0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		5.25V
Approval Agency		CE, cURus
Efficiency		70%
Current - Output (Max)		200mA
Voltage - Input (Min)		4.75V
Voltage - Output 1		5V
Power (Watts)		1 W
Number of Outputs		1
Voltage - Isolation		3 kV
Standard Number		62368-1

RESOURCE TYPE		LINK
Datasheets		1S7B_0505S3RP

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant
