1P1G14MDBVREP

1P1G14MDBVREP

Part Number	1P1G14MDBVREP
Manufacturer	Texas Instruments
Other Part Numbers	296-1P1G14MDBVREPTR-ND 296-1P1G14MDBVREPTR
Description	IC INVERTER 1CH 1-INP SOT23-5
Detailed Description	Inverter IC 1 Channel Schmitt Trigger SOT-23-5
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Texas Instruments
Series		74LVC
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Schmitt Trigger

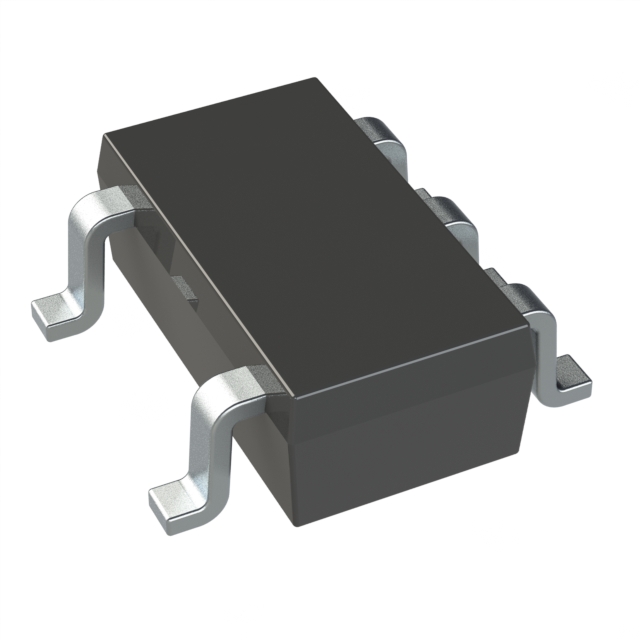

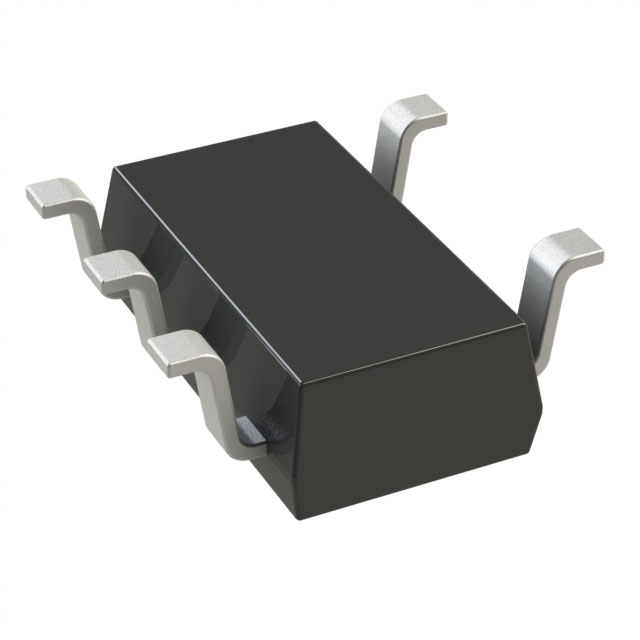

Package / Case		SC-74A, SOT-753
Mounting Type		Surface Mount
Logic Type		Inverter
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		1.65V ~ 5.5V
Current - Output High, Low		32mA, 32mA
Number of Inputs		1
Supplier Device Package		SOT-23-5
Input Logic Level - High		1.16V ~ 3.33V
Input Logic Level - Low		0.39V ~ 1.87V
Max Propagation Delay @ V, Max CL		5ns @ 5V, 50pF
Number of Circuits		1
Current - Quiescent (Max)		19 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1P1G14MDBVREP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
