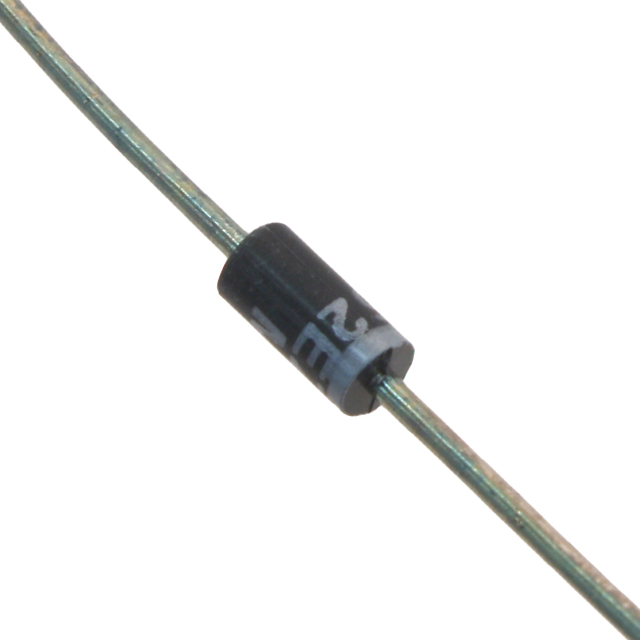

1N5914BP/TR12

Part Number
1N5914BP/TR12
Manufacturer Microsemi Corporation
Other Part Numbers
150-1N5914BP/TR12TR-ND
150-1N5914BP/TR12TR
1N5914BP/TR12-ND
Description DIODE ZENER 3.6V 1.5W DO204AL
Detailed Description Zener Diode 3.6 V 1.5 W ±5% Through Hole DO-204AL (DO-41)

Product Attributes

Category
Manufacturer Microsemi Corporation
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Tolerance ±5%
Package / Case DO-204AL, DO-41, Axial
Mounting Type Through Hole
Operating Temperature -65°C ~ 150°C
Voltage - Zener (Nom) (Vz) 3.6 V
Impedance (Max) (Zzt) 9 Ohms
Supplier Device Package DO-204AL (DO-41)
Power - Max 1.5 W
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Current - Reverse Leakage @ Vr 75 µA @ 1 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
