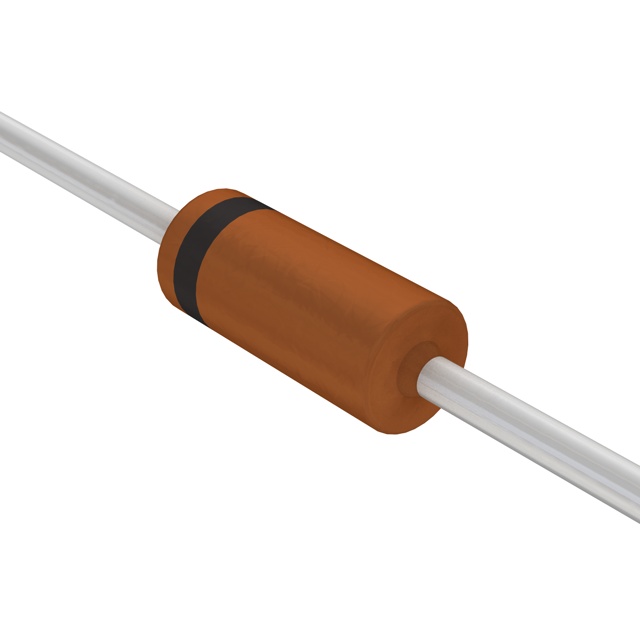

1N5257B BK PBFREE

1N5257B BK PBFREE

Part Number	1N5257B BK PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1N5257BBKPBFREE-ND 1514-1N5257BBKPBFREE 1N5257B BK 1N5257BBK 1N5257B BK-ND 1N5257BBK-ND
Description	DIODE ZENER 33V 500MW DO35
Detailed Description	Zener Diode 33 V 500 mW ±5% Through Hole DO-35
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Bulk
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AH, DO-35, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		33 V
Impedance (Max) (Zzt)		58 Ohms
Supplier Device Package		DO-35
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.1 V @ 200 mA
Current - Reverse Leakage @ Vr		100 nA @ 25 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5257B BK PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
