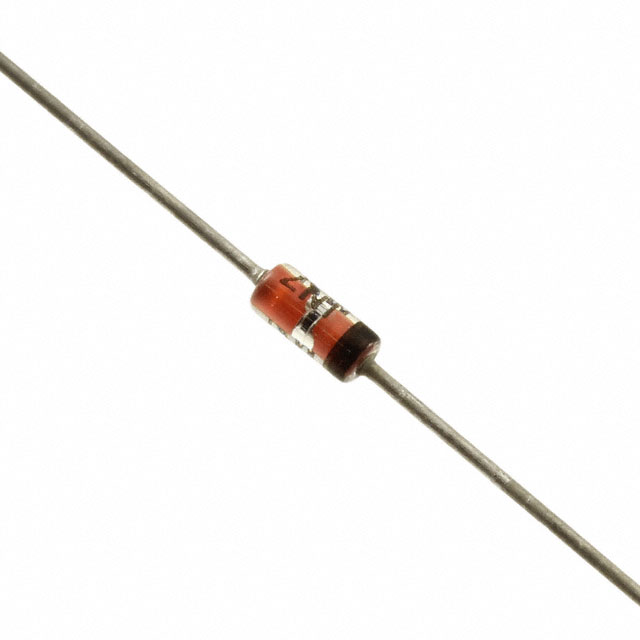

1N5249A (DO-35)

1N5249A (DO-35)

Part Number	1N5249A (DO-35)
Manufacturer	Microsemi Corporation
Other Part Numbers	150-1N5249A(DO-35)TR-ND 150-1N5249A(DO-35)CT-ND 1N5249ADO35MSCT 1N5249BMSCT 1N5249DO35MSTR-ND 1N5249DO35MSCT 1N5249BMSCT-ND 1N5249A (DO-35)MSCT-ND 1N5249ADO35MSTR-ND 1N5249ADO35MSTR 150-1N5249A(DO-35)CT 1N5249DO35MSTR 1N5249DO35MSCT-ND 1N5249ADO35 1N5249DO35MSTR-NDR 150-1N5249A(DO-35)TR 1N5249ADO35MSCT-ND 1N5249DO35 1N5249BMSTR-ND 1N5249A (DO-35)MSTR-ND 1N5249A(DO-35)MSCT 1N5249A (DO-35)MSTR 1N5249A(DO-35)MSTR 1N5249ADO3 1N5249A (DO-35)-ND 1N5249BMSTR 1N5249A(DO-35)MSCT-ND 1N5249A(DO-35)MSTR-ND
Description	DIODE ZENER 19V 500MW DO35
Detailed Description	Zener Diode 19 V 500 mW ±10% Through Hole DO-35

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Microsemi Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		DO-204AH, DO-35, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 175°C
Voltage - Zener (Nom) (Vz)		19 V
Impedance (Max) (Zzt)		23 Ohms
Supplier Device Package		DO-35
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.5 V @ 200 mA
Current - Reverse Leakage @ Vr		100 nA @ 14 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5249A (DO-35)
Environmental Information		Microchip RoHS
Environmental Information		Microchip REACH
Environmental Information		Microchip CA Prop65
Product Drawings		1N52 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

In Stock: 1920

Can ship immediately.
