1N5244B TR PBFREE

1N5244B TR PBFREE

Part Number	1N5244B TR PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1N5244BTRPBFREETR-ND 1514-1N5244BTRPBFREECT-ND 1514-1N5244BTRPBFREECT 1N5244BCSCT-ND 1514-1N5244BTRPBFREETR 1N5244B TR 1N5244BCSTR-ND 1N5244BCSCT 1N5244B TR-ND 1N5244BCSTR 1N5244B CT 1N5244B CT-ND
Description	DIODE ZENER 14V 500MW DO35

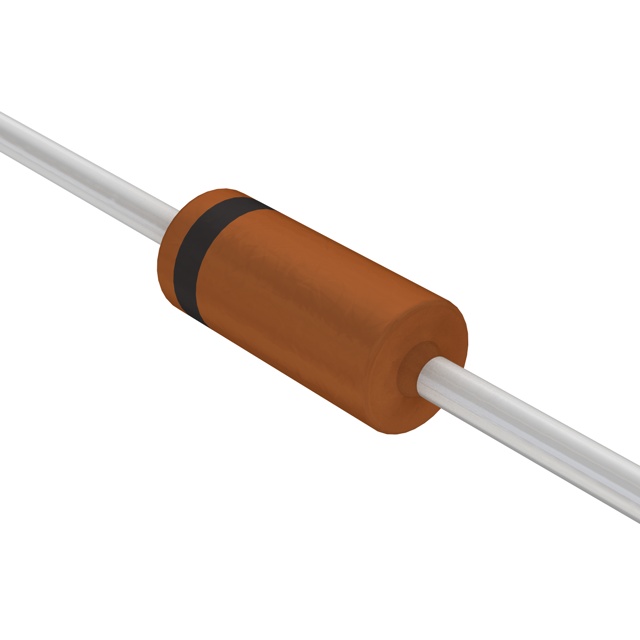

Detailed Description	Zener Diode 14 V 500 mW ±5% Through Hole DO-35
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AH, DO-35, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		14 V
Impedance (Max) (Zzt)		15 Ohms
Supplier Device Package		DO-35
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		1.1 V @ 200 mA
Current - Reverse Leakage @ Vr		100 nA @ 10 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N5244B TR PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7429

Can ship immediately.
