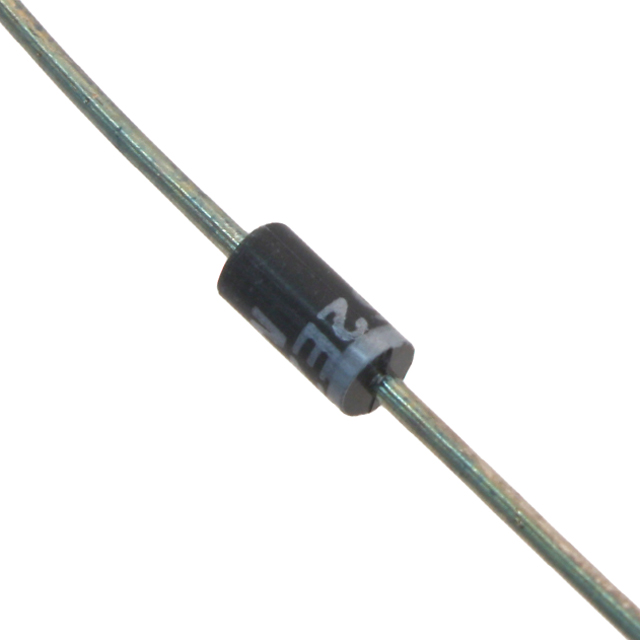

1N4743AP/TR8

1N4743AP/TR8

Part Number	1N4743AP/TR8
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	150-1N4743AP/TR8TR-ND 150-1N4743AP/TR8CT-ND 1N4743AMSCT-ND 1N4743AP/TR8-ND 278-1N4743AP/TR8CT-ND 1N4743ADO41 1N4743APMSTR-ND 150-1N4743AP/TR8TR 1N4743AMSCT 1N4743APMSTR 1N4743ADO41MSTR-ND 150-1N4743AP/TR8CT 1N4743ADO41MSCT-ND 1N4743ADO41MSTR-NDR 1N4743APMSCT-ND 1N4743A P 1N4743AGMSCT-ND 1N4743APMSCT 1N4743AGMSCT 1N4743AMSTR-ND 278-1N4743AP/TR8TR 278-1N4743AP/TR8CT 1N4743ADO41MSTR 1N4743AP 1N4743AMSTR 278-1N4743AP/TR8TR-ND 1N4743ADO41MSCT
Description	DIODE ZENER 13V 1W DO204AL
Detailed Description	Zener Diode 13 V 1 W ±5% Through Hole DO-204AL (DO-41)
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AL, DO-41, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		13 V
Impedance (Max) (Zzt)		10 Ohms
Supplier Device Package		DO-204AL (DO-41)
Power - Max		1 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 200 mA
Current - Reverse Leakage @ Vr		5 µA @ 9.9 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N4743AP/TR8
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		Manufacturing Change 23/Feb/2021
Datasheets		1N47, 2EZ Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
