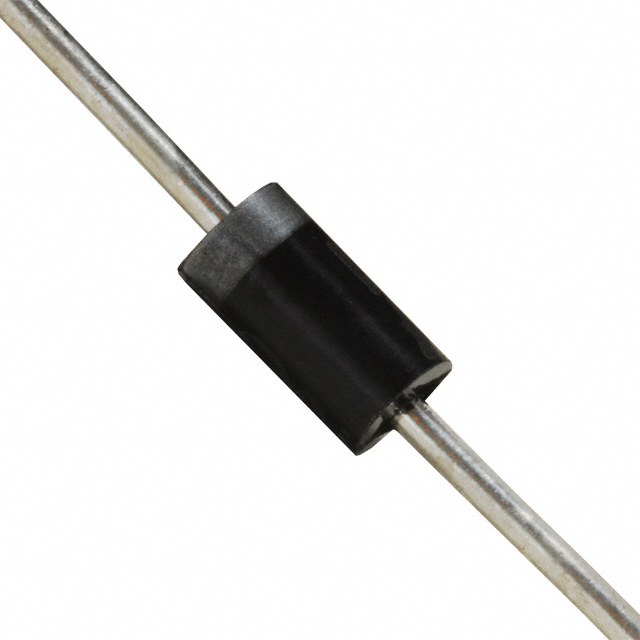

1N4743A TR PBFREE

1N4743A TR PBFREE

Part Number	1N4743A TR PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1N4743ATRPBFREETR-ND 1514-1N4743ATRPBFREECT-ND 1514-1N4743ATRPBFREETR 1N4743A TR 1N4743ACSTR-ND 1N4743A CT 1514-1N4743ATRPBFREECT 1N4743ACSCT-ND 1N4743ACSTR 1N4743A CT-ND 1N4743A TR-ND 1N4743ACSCT
Description	DIODE ZENER 13V 1W DO41
Detailed Description	Zener Diode 13 V 1 W ±5% Through Hole DO-41
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AL, DO-41, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		13 V
Impedance (Max) (Zzt)		10 Ohms
Supplier Device Package		DO-41
Power - Max		1 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 200 mA
Current - Reverse Leakage @ Vr		5 µA @ 9.9 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N4743A TR PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 9445

Can ship immediately.
