1N4742A TR PBFREE

1N4742A TR PBFREE

Part Number	1N4742A TR PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1N4742ATRPBFREETR-ND 1514-1N4742ATRPBFREECT-ND 1N4742ACSCT 1N4742ACSTR-ND 1514-1N4742ATRPBFREETR 1N4742ACSTR 1N4742A CT 1N4742ACSCT-ND 1514-1N4742ATRPBFREECT 1N4742A TR 1N4742A CT-ND 1N4742A TR-ND
Description	DIODE ZENER 12V 1W DO41

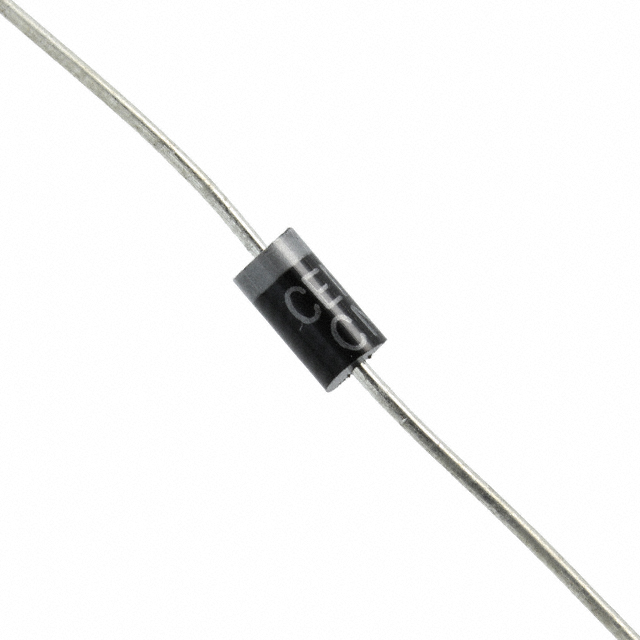

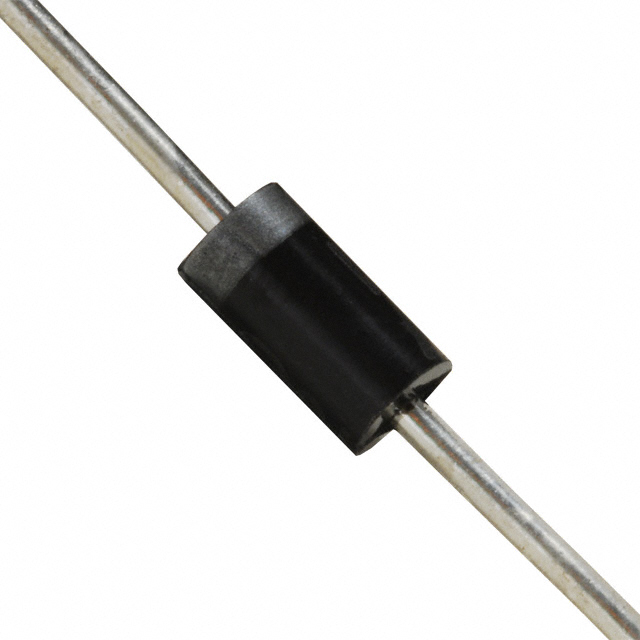

Detailed Description	Zener Diode 12 V 1 W ±5% Through Hole DO-41
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AL, DO-41, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 200°C
Voltage - Zener (Nom) (Vz)		12 V
Impedance (Max) (Zzt)		9 Ohms
Supplier Device Package		DO-41
Power - Max		1 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 200 mA
Current - Reverse Leakage @ Vr		5 µA @ 9.1 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1N4742A TR PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2655

Can ship immediately.
