1EDI2010ASXUMA1

Part Number
1EDI2010ASXUMA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
1EDI2010ASXUMA1TR-ND
1EDI2010ASXUMA1CT-ND
1EDI2010ASXUMA1DKR-ND
2156-1EDI2010ASXUMA1
IFEINF1EDI2010ASXUMA1
1EDI2010ASXUMA1-ND
1EDI2010ASXUMA1CT
SP001299836
1EDI2010ASXUMA1DKR
1EDI2010ASXUMA1TR
Description DGT ISO 3.75KV 1CH GT DVR DSO36
Detailed Description Gate Driver Magnetic Coupling 3750Vrms 1 Channel PG-DSO-36-63
Manufacturer Standard Lead Time 26 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
EiceDriver™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

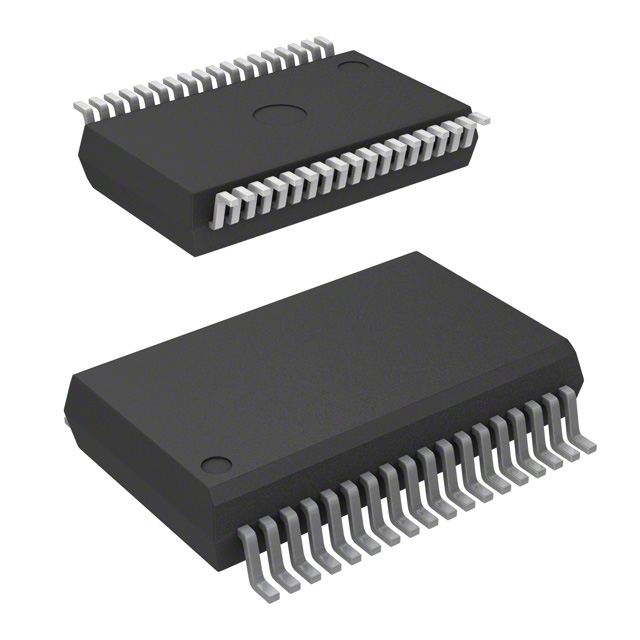

Package / Case 36-BSSOP (0.295", 7.50mm Width)
Mounting Type Surface Mount
Operating Temperature -40°C ~ 150°C (TJ)
Technology Magnetic Coupling
Voltage - Isolation 3750Vrms
Supplier Device Package PG-DSO-36-63
Rise / Fall Time (Typ) 120ns, 150ns
Grade Automotive
Number of Channels 1
Voltage - Output Supply 13V ~ 18V
Qualification AEC-Q100

Documents & Media

RESOURCE TYPE LINK
Datasheets 1EDI2010AS Brief
Datasheets Mult Dev Label Chgs 11/Jan/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2231

Can ship immediately.
