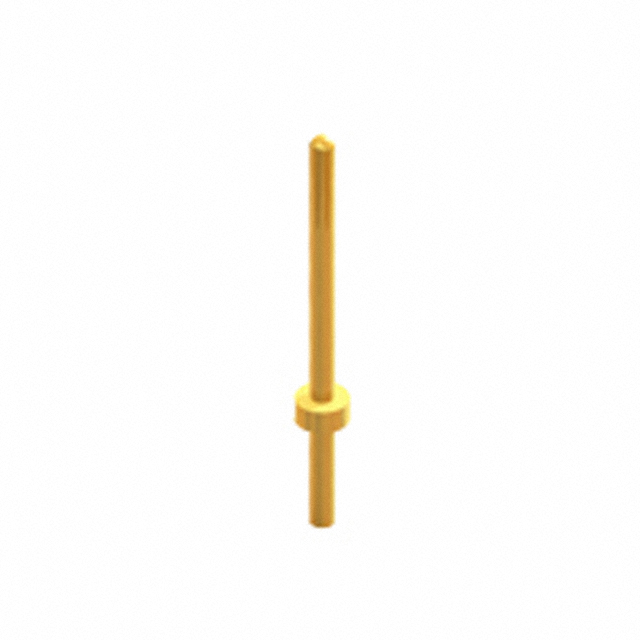

1998-3 _ PC Pin, Single Post Connectors_Terminals_Connectors, Interconnects

Part Number	1998-3
Manufacturer	Keystone Electronics Corp.
Other Part Numbers	36-1998-3-ND KEY1243 36-1998-3 KEY1243-ND 1998-3K-ND 1998-3K-NDR 1998-3K
Description	CONN PC PIN CIRC 0.020DIA GOLD
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminals PC Pin, Single Post Connectors
Manufacturer		Keystone Electronics Corp.
Series
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Mounting Type		Through Hole
Insulation		Non-Insulated
Board Thickness		0.093" (2.36mm)
Terminal Type		PC Pin
Flange Diameter		0.045" (1.14mm)
Length - Overall		0.370" (9.40mm)
Termination		Solder
Mounting Hole Diameter		0.024" (0.61mm)
Contact Finish Thickness		10.0µin (0.25µm)
Contact Material		Brass
Terminal Style		Single End
Pin Size - Above Flange		0.020" (0.51mm) Dia
Pin Size - Below Flange		0.020" (0.51mm) Dia
Length - Below Flange		0.100" (2.54mm)
Length - Above Flange		0.250" (6.35mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
