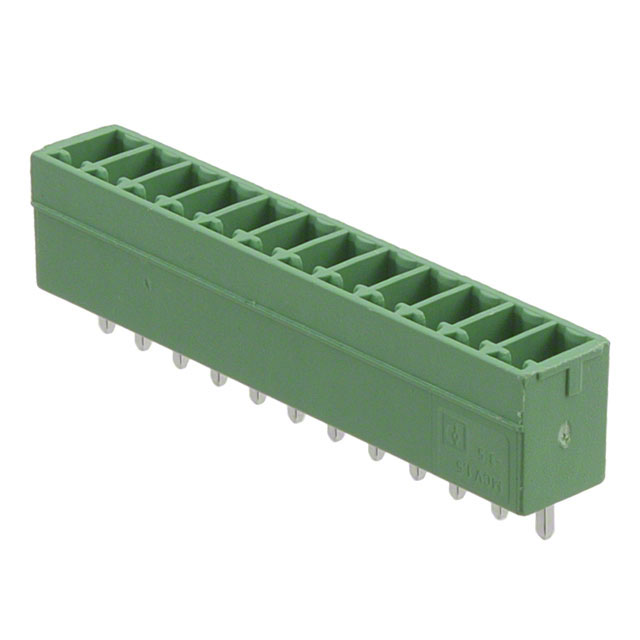

1843703 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1843703
Manufacturer	Phoenix Contact
Other Part Numbers	277-5812-ND 277-5812 MCV1,5/12-G-3,5 1843703-ND 1843703-NDR
Description	TERM BLOCK HDR 12POS VERT 3.5MM
Detailed Description	12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MCV
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		12
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		8A
Number of Levels		1
Positions Per Level		12
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.134" (3.40mm)
Insulation Height		0.362" (9.20mm)
Current - UL		8 A
Voltage - IEC		250 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1843703

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
