1803581 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1803581
Manufacturer	Phoenix Contact
Other Part Numbers	277-1162-ND MC1,5/3-ST-3,81 277-1162 MC 1.5/3-ST-3.81

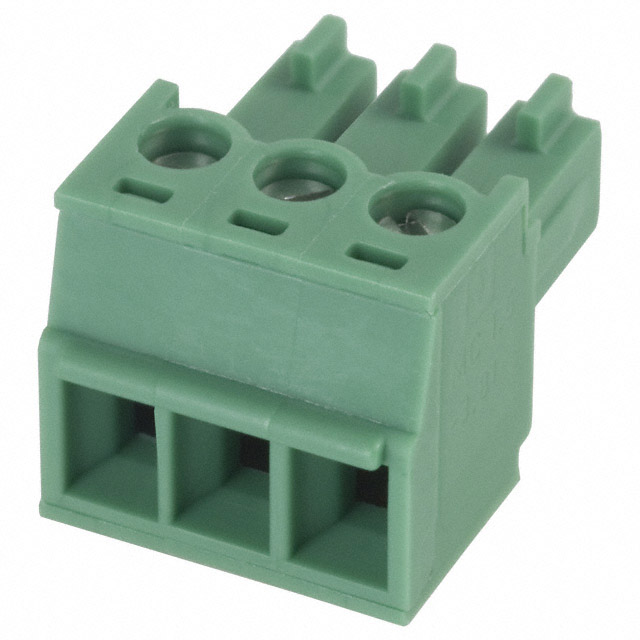

Description	TERM BLOCK PLUG 3POS STR 3.81MM
Detailed Description	3 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MC
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		3
Pitch		0.150" (3.81mm)
Screw Size		M2
Type		Plug, Female Sockets
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		8A
Number of Levels		1
Wire Gauge or Range - AWG		14-30 AWG
Wire Gauge or Range - mm²		0.14-1.5mm²
Positions Per Level		3
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.22-0.25 Nm (1.9-2.2 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.437" (11.10mm)
Current - UL		8 A
Voltage - IEC		320 V
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
