1776294-8 _ Barrier Blocks_Terminal Blocks_Connectors, Interconnects

Part Number	1776294-8
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	1776294-8-ND TSB23008
Description	CONN TERM STRIP 8CIRC 0.315"

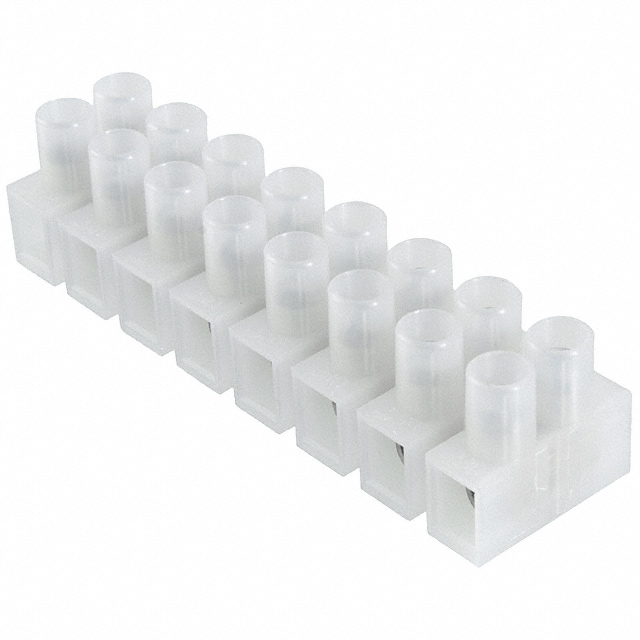

Detailed Description	8 Circuit 0.315" (8.00mm) Eurostyle Terminal Strip Connector Screws
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Barrier Blocks
Manufacturer		TE Connectivity AMP Connectors
Series		TSB230, Buchanan
Packaging		Bulk
Part Status		Active
Color		Natural
Voltage Rating		250V
Current Rating (Amps)		30A
Mounting Type		Chassis, Panel
Wire Gauge		12-24 AWG
Pitch		0.315" (8.00mm)
Number of Rows		2
Operating Temperature		-35°C ~ 100°C
Terminal Block Type		Eurostyle Terminal Strip
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-2
Terminal Screw Material		Steel
Terminal Screw Finish		Zinc, Non-Hexavalent Chromate
Top Termination		Screws
Bottom Termination		Closed
Barrier Type		Enclosed
Number of Circuits		8
Number of Wire Entries		16

RESOURCE TYPE		LINK
Datasheets		1776294-8
Datasheets		1776294-8 Statement of Compliance
Datasheets		Multiple Drawings Drawing Notes 12/Sep/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		RoHS Compliant
