1775954001 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1775954001
Manufacturer	Weidmuller
Other Part Numbers	281-6823-2-ND 281-6823-1-ND 281-6823-6-ND SLSMT5.085180B1.5200 1775954001-NDR 281-6823-6INACTIVE 2266-1651430000 281-6823-6 281-6823-1 1775954001-ND 281-6823-2 SL-SMT5.08HC/05/180G1.5SNBKRL

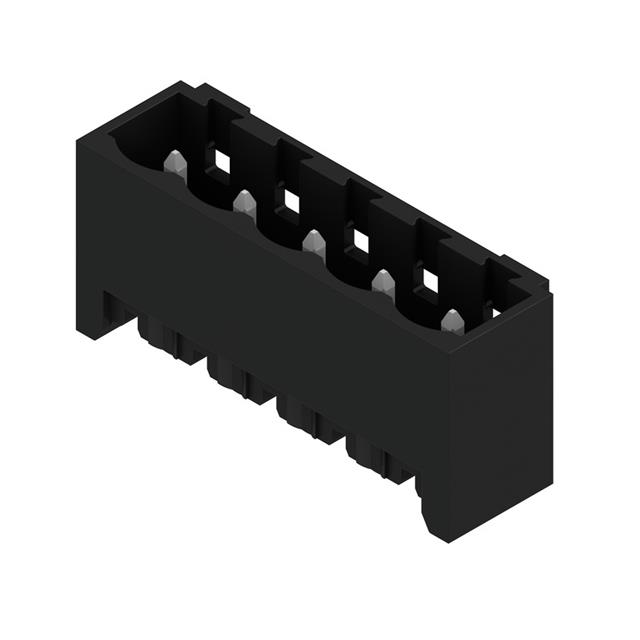

Description	TERM BLOCK HDR 5POS VERT 5.08MM
Detailed Description	5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		5
Pitch		0.200" (5.08mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		27.5A
Number of Levels		1
Positions Per Level		5
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Liquid Crystal Polymer (LCP), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.059" (1.50mm)
Insulation Height		0.472" (12.00mm)
Current - UL		18.5 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1775954001

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
