1767054 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1767054
Manufacturer	Phoenix Contact
Other Part Numbers	277-6260-ND GMSTB2,5/7-ST-7,62 1767054-NDR 277-6260 1767054-ND

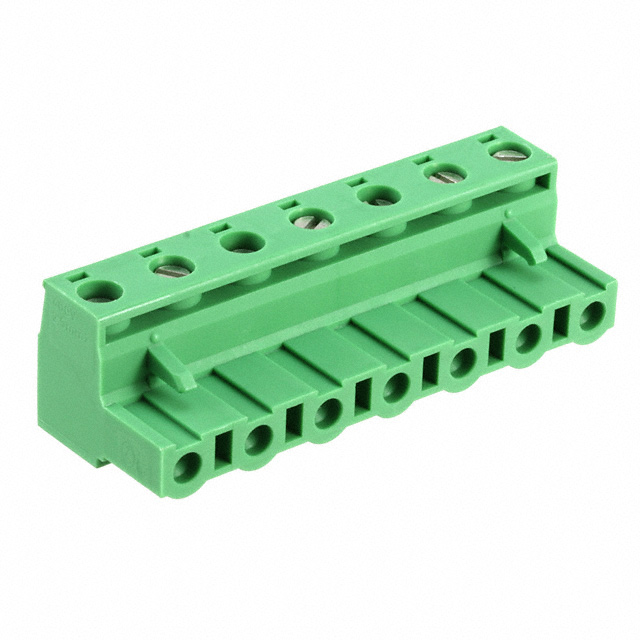

Description	TERM BLOCK PLUG 7POS STR 7.62MM
Detailed Description	7 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON GMSTB
Packaging		Bulk
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		7
Pitch		0.300" (7.62mm)
Screw Size		M3
Type		Plug, Female Sockets
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		7
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5-0.6 Nm (4.4-5.3 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.591" (15.00mm)
Current - UL		15 A
Voltage - IEC		1 kV
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1767054
Datasheets		Multiple Devices Approval Markings 19/Nov/2018
Datasheets		Multiple Devices Certification Marking 05/Mar/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
