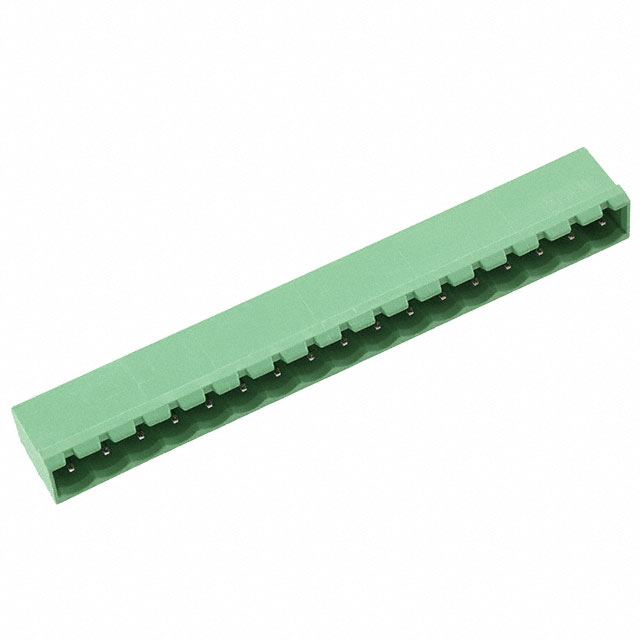

1757611 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1757611
Manufacturer	Phoenix Contact
Other Part Numbers	277-13933-ND 1757611-ND 277-13933 MSTBA2,5/17-G MSTBA 2,5/17-G
Description	TERM BLOCK HDR 17POS 90DEG 5MM
Detailed Description	17 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MSTBA
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		17
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		17
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA), Nylon
Contact Mating Finish		Tin
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.339" (8.61mm)
Current - UL		15 A
Voltage - IEC		400 V
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
