174-E09-111R241 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	174-E09-111R241
Manufacturer	NorComp
Other Part Numbers	174-209MEA-ND 174-209MEA

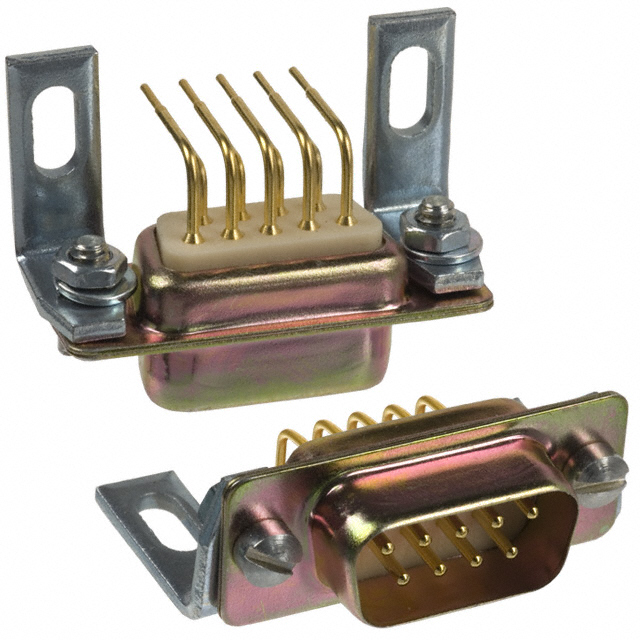

Description	CONN D-SUB PLUG 9POS R/A SLDR
Detailed Description	9 Position D-Sub Plug, Male Pins Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		174-E, M Series
Packaging		Tray
Part Status		Obsolete
Features		Mounting Brackets
Connector Type		Plug, Male Pins
Contact Finish		Gold
Color		White
Current Rating (Amps)		5A
Mounting Type		Panel Mount, Through Hole, Right Angle
Number of Positions		9
Number of Rows		2
Operating Temperature		-50°C ~ 100°C
Contact Type		Signal
Flange Feature		Mating Side, Standard Screws (4-40)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polyamide (PA6T), Nylon 6T
Shell Material, Finish		Steel, Yellow Chromate Plated
Contact Material		Brass
Shell Size, Connector Layout		1 (DE, E)
Contact Form		Machined
Backset Spacing		0.370" (9.40mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
