1739 _ Alarms, Buzzers, and Sirens_Audio Products

Part Number	1739
Manufacturer	Adafruit
Other Part Numbers	1528-1566-ND 1528-1566

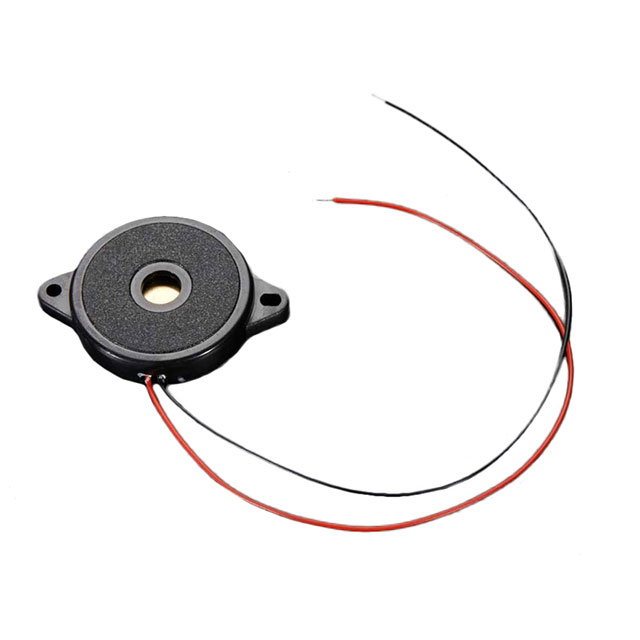

Description	BUZZER PIEZO 12V 30MM FLANGE
Detailed Description	Buzzers Transducer, Externally Driven Piezo 12 V 3.5mA 2.65kHz 85dB @ 12V, 10cm Panel Mount, Flange Wire Leads
Manufacturer Standard Lead Time	12 weeks

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		Adafruit
Series
Packaging		Bulk
Part Status		Active
Size / Dimension		1.181" Dia (30.00mm)
Mounting Type		Panel Mount, Flange
Frequency		2.65kHz
Operating Temperature		-20°C ~ 60°C
Sound Pressure Level (SPL)		85dB @ 12V, 10cm
Current - Supply		3.5mA
Input Type		Peak-Peak Signal
Operating Mode		Single Tone
Voltage Range		1 ~ 30V
Technology		Piezo
Termination		Wire Leads
Port Location		Top
Driver Circuitry		Transducer, Externally Driven
Height - Seated (Max)		0.224" (5.70mm)
Voltage - Rated		12 V

RESOURCE TYPE		LINK
Datasheets		1739

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8531.80.9041
Moisture Sensitivity Level (MSL)		1 (Unlimited)

Can ship immediately.
