173796-E

Part Number
173796-E
Manufacturer TE Connectivity ERNI
Other Part Numbers
2684-173796-E-ND
2684-173796-E

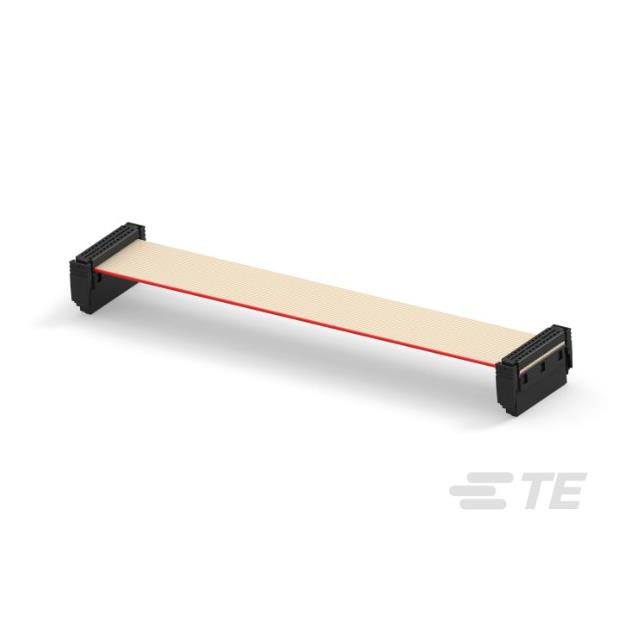

Description 26-PIN, FEMALE ANGLED, 100 MM
Detailed Description 26 Position Cable Assembly Rectangular Socket to Socket 0.328' (100.00mm, 3.94")
Manufacturer Standard Lead Time 22 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity ERNI
Series
Packaging
Box
Part Status Active
Connector Type Socket to Socket
Color Gray, Ribbon
Length 0.328' (100.00mm, 3.94")
Shielding Unshielded
Number of Positions 26
Number of Rows 2
Cable Termination IDC
Pitch - Cable 0.025" (0.64mm)
Pitch - Connector 0.050" (1.27mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets Manufacturing process chg 12/OCT/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8544.42.9090
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 6

Can ship immediately.
