172-025-102R001 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	172-025-102R001
Manufacturer	NorComp
Other Part Numbers	1125MA-ND 1125MA 172025102R001

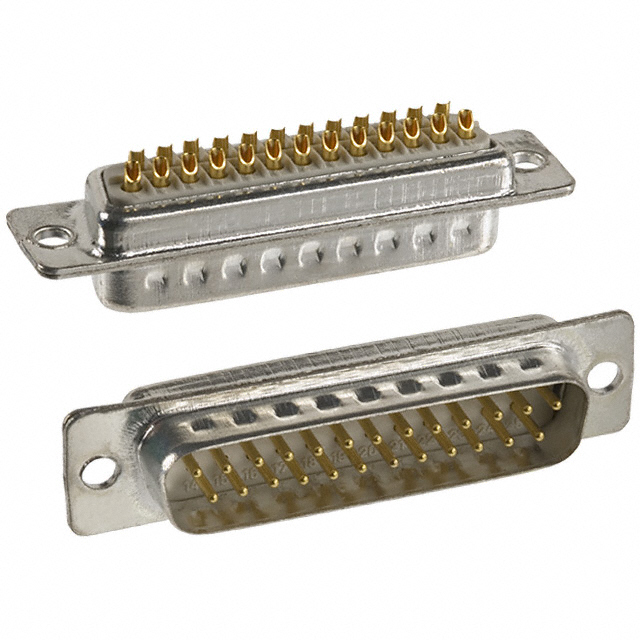

Description	CONN D-SUB PLUG 25POS PNL MNT
Detailed Description	25 Position D-Sub Plug, Male Pins Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		172, M Series
Packaging		Tray
Part Status		Obsolete
Features		Grounding Indents
Connector Type		Plug, Male Pins
Contact Finish		Gold
Color		Beige
Current Rating (Amps)		5A
Mounting Type		Panel Mount
Wire Gauge		20-26 AWG
Number of Positions		25
Number of Rows		2
Operating Temperature		-50°C ~ 100°C
Contact Type		Signal
Flange Feature		Housing/Shell (Unthreaded)
Termination		Solder Cup
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish		Steel, Tin Plated
Contact Material		Brass
Shell Size, Connector Layout		3 (DB, B)
Contact Form		Machined

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
