172-015-112R031 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	172-015-112R031
Manufacturer	NorComp
Other Part Numbers	4515MA-ND 4515MA 172015112R031

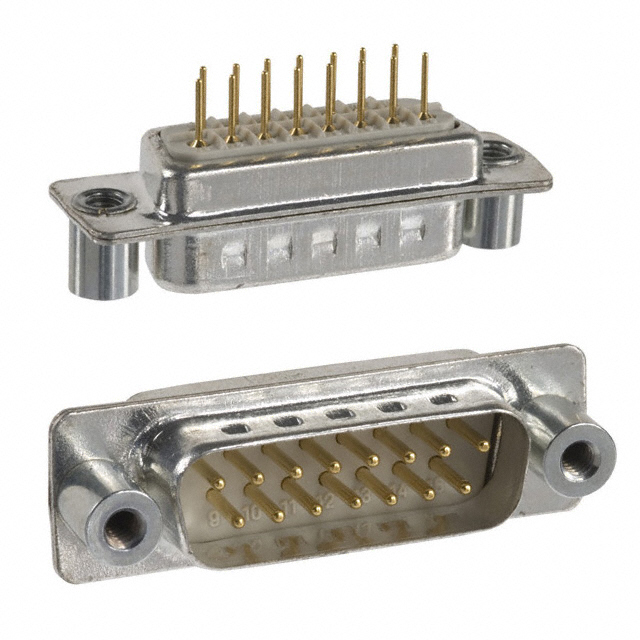

Description	CONN D-SUB PLUG 15P PNL MNT SLDR
Detailed Description	15 Position D-Sub Plug, Male Pins Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		172, M Series
Packaging		Tray
Part Status		Obsolete
Features		Grounding Indents
Connector Type		Plug, Male Pins
Contact Finish		Gold
Color		Beige
Current Rating (Amps)		5A
Mounting Type		Panel Mount, Through Hole
Number of Positions		15
Number of Rows		2
Operating Temperature		-50°C ~ 100°C
Contact Type		Signal
Flange Feature		Mating Side (4-40)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Polyester
Shell Material, Finish		Steel, Tin Plated
Contact Material		Brass
Shell Size, Connector Layout		2 (DA, A)
Contact Form		Machined

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
