172-009-212R011 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	172-009-212R011
Manufacturer	NorComp
Other Part Numbers	2509FA-ND 2509FA 172009212R011
Description	CONN D-SUB RCPT 9P PNL MNT SLDR

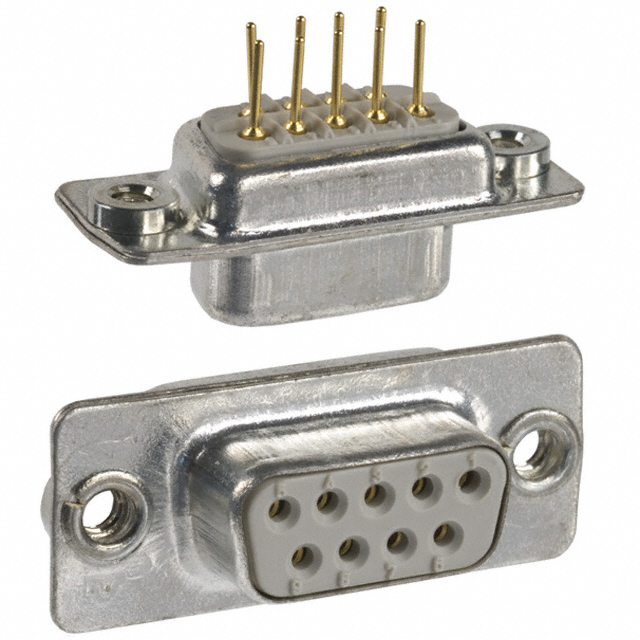

Detailed Description	9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		172, M Series
Packaging		Tray
Part Status		Obsolete
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Beige
Current Rating (Amps)		5A
Mounting Type		Panel Mount, Through Hole
Number of Positions		9
Number of Rows		2
Operating Temperature		-50°C ~ 100°C
Contact Type		Signal
Flange Feature		Board Side (4-40)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Polyester
Shell Material, Finish		Steel, Tin Plated
Contact Material		Brass
Shell Size, Connector Layout		1 (DE, E)
Contact Form		Machined

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
