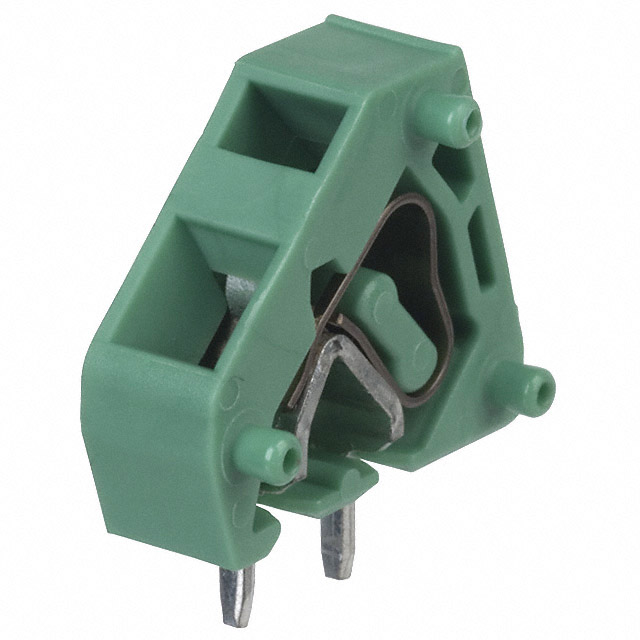

1706701

1706701

Part Number	1706701
Manufacturer	Phoenix Contact
Other Part Numbers	277-1314-ND ZFKDS 1,5-5.08 ZFKDS1,5-5,08 277-1314
Description	TERM BLOCK 1POS 45DEG PCB
Detailed Description	1 Position Wire to Board Terminal Block 45° (135°) Angle with Board Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Phoenix Contact
Series		COMBICON ZFKDS
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Green
Mounting Type		Through Hole
Wire Gauge		12-26 AWG
Mating Orientation		45° (135°) Angle with Board
Positions Per Level		1
Housing Material		Polyamide (PA), Nylon
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		10 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1706701
Datasheets		Multiple Devices 01/Jul/2013
Datasheets		1706701

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1900

Can ship immediately.
