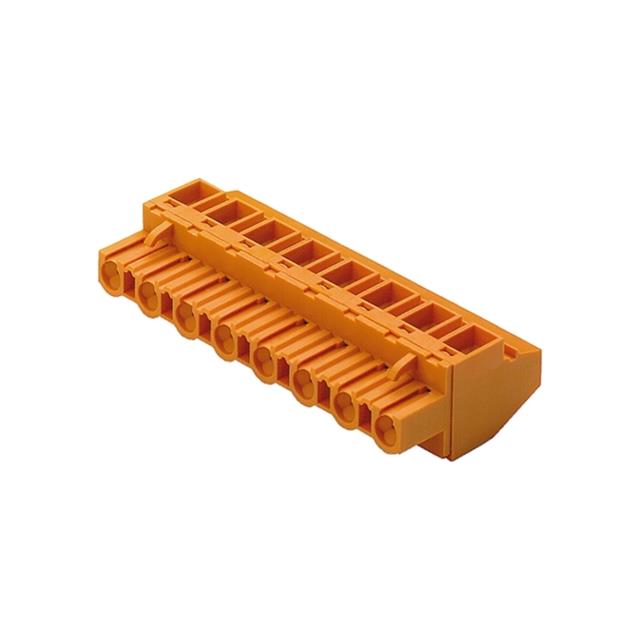

1702000000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1702000000
Manufacturer	Weidmuller
Other Part Numbers	281-1312-ND 2266-1938820000 170200 281-1312 BLZ 7.50/90/12 BK 281-1312-NDR
Description	TERM BLOCK PLUG 12POS 7.5MM
Detailed Description	12 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 90° Free Hanging (In-Line)

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate BL
Packaging		Bulk
Part Status		Obsolete
Features		Retention Latches (Wire Side)
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		12
Pitch		0.295" (7.50mm)
Screw Size		M2.5
Type		Plug, Female Sockets
Operating Temperature		-20°C ~ 100°C
Termination Style		Screw - Clamping Yoke (Tension Sleeve)
Material Flammability Rating		UL94 V-0
Current - IEC		13A
Number of Levels		1
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Positions Per Level		12
Contact Material		Copper Alloy
Plug Wire Entry		90°
Housing Material		Polybutylene Terephthalate (PBT)
Torque - Screw		0.4-0.5 Nm (3.5-4.4 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.551" (14.00mm)
Current - UL		15 A
Voltage - IEC		500 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
