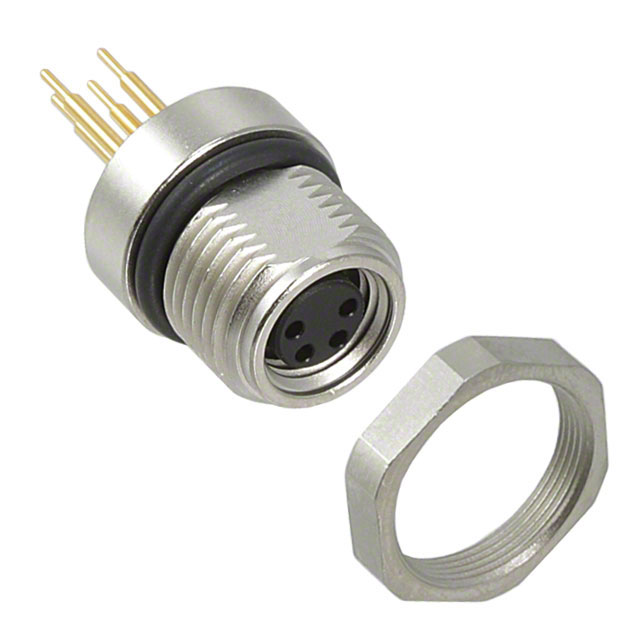

1694376 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	1694376
Manufacturer	Phoenix Contact
Other Part Numbers	277-2720-ND SACC-DSI-M8FS-4CON-L-180 277-2720 1694376-ND
Description	CONN RCPT FMALE 4POS GOLD SOLDER
Detailed Description	4 Position Circular Connector Receptacle, Female Sockets Solder
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Phoenix Contact
Series		DSI
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle, Female Sockets
Color		Silver
Voltage Rating		50VAC, 60VDC
Current Rating (Amps)		4A
Mounting Type		Panel Mount, Through Hole
Number of Positions		4
Orientation		A
Shell Size - Insert		M8-4
Operating Temperature		-40°C ~ 85°C
Fastening Type		Threaded
Termination		Solder
Ingress Protection		IP67 - Dust Tight, Waterproof
Material Flammability Rating		UL94 HB
Mounting Feature		Bulkhead - Front Side Nut
Contact Material		Copper Tin
Contact Finish - Mating		Gold
Shell Material		Brass
Shell Finish		Nickel
Insert Material		Polyamide (PA66), Nylon 6/6
Primary Material		Metal

RESOURCE TYPE		LINK
Datasheets		1694376
Datasheets		M8 Sockets O-Ring Color 13/Jul/2015
Datasheets		Multiple Device Product Improvement 24/Jun/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
