1687850000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1687850000
Manufacturer	Weidmuller
Other Part Numbers	1687850000-ND BL 3.50/22/180LH SN OR BX 1687850000-NDR BL 3.5/22LH SN OR 2266-1775044001TR
Description	TERM BLOCK PLUG 22POS STR 3.5MM

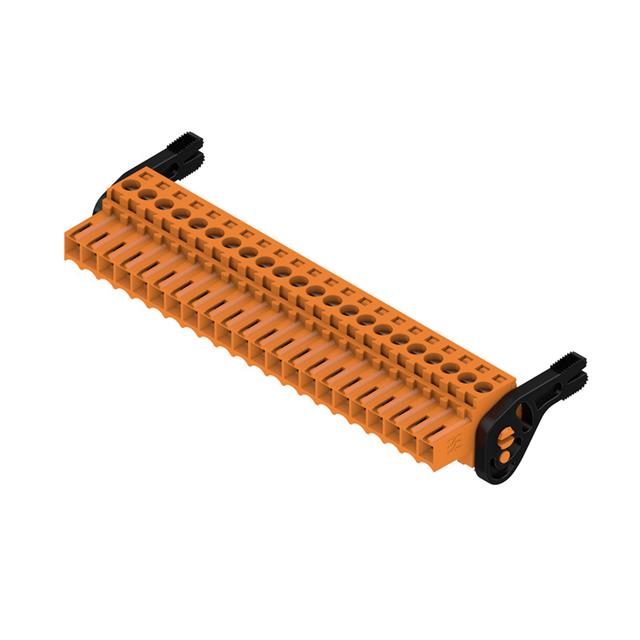

Detailed Description	22 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	27 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate BL
Packaging		Bulk
Part Status		Active
Features		Ejector Latches
Color		Orange
Mounting Type		Free Hanging (In-Line)
Number of Positions		22
Pitch		0.138" (3.50mm)
Screw Size		M2
Type		Plug, Female Sockets
Operating Temperature		-50°C ~ 100°C
Termination Style		Screw - Clamping Yoke (Tension Sleeve)
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		17A
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.2-1.5mm²
Positions Per Level		22
Contact Material		Copper Alloy
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Torque - Screw		0.2-0.25 Nm (1.7-2.2 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		6mm
Insulation Height		0.648" (16.46mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
