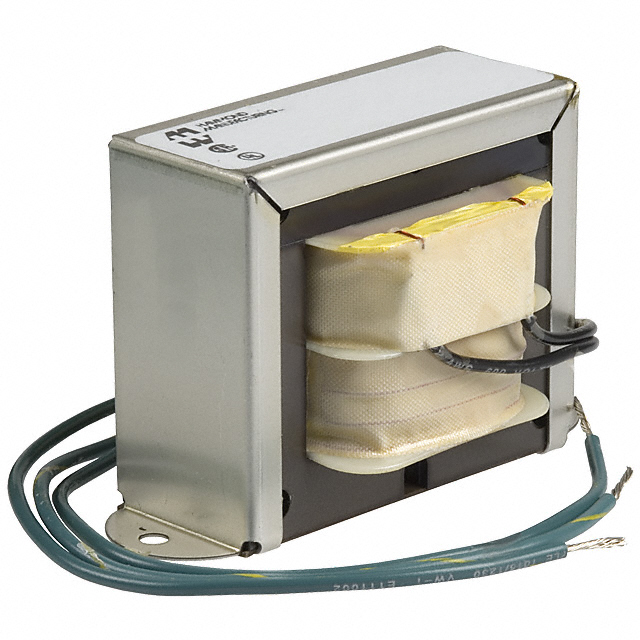

166E25

Part Number
166E25
Manufacturer Hammond Manufacturing
Other Part Numbers
HM550-ND
HM550
Description PWR XFMR LAMINATED 3.75VA CHAS
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Hammond Manufacturing
Series
166
Packaging
Bulk
Part Status Active
Size / Dimension 60.45mm L x 35.05mm W
Mounting Type Chassis Mount
Type Laminated Core
Weight 0.4 lb (181.44 g)
Termination Style Wire Leads
Primary Winding(s) Single
Secondary Winding(s) Single
Power - Max 3.75VA
Voltage - Isolation 2000Vrms
Current - Output (Max) 150mA
Voltage - Primary 115V
Height - Seated (Max) 35.05mm
Voltage - Secondary (Full Load) 25V
Center Tap Yes

Documents & Media

RESOURCE TYPE LINK
Datasheets Hammond REACH
Datasheets 166E25 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 7

Can ship immediately.
