1646170000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1646170000
Manufacturer	Weidmuller
Other Part Numbers	1646170000-ND BLL 5.08/180/5 OG 2266-1874360000TR 1646170000-NDR BLL 5.08/05/180 4.5SN OR BX

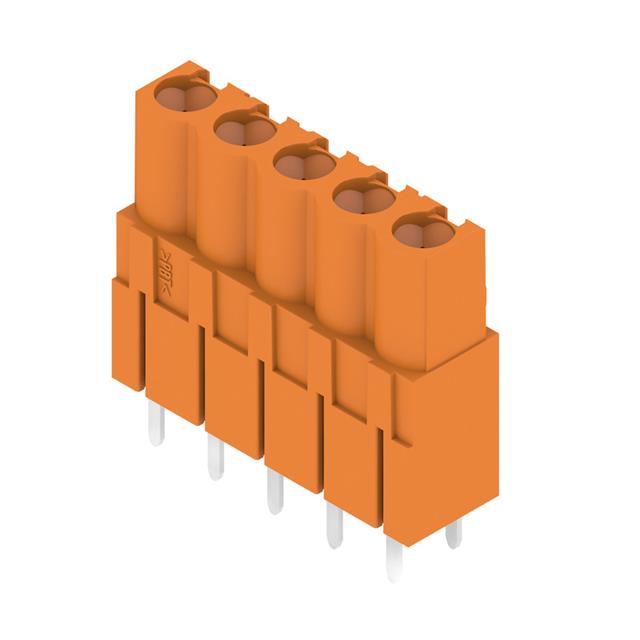

Description	TERM BLOCK HDR 5POS VERT 5.08MM
Detailed Description	5 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate BL
Packaging		Bulk
Part Status		Active
Features		Retention Latches
Color		Orange
Mounting Type		Through Hole
Number of Positions		5
Pitch		0.200" (5.08mm)
Type		Header, Female Sockets
Operating Temperature		-20°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		5
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.177" (4.50mm)
Insulation Height		0.797" (20.24mm)
Current - UL		15 A
Voltage - IEC		250 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
