1643950000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1643950000
Manufacturer	Weidmuller
Other Part Numbers	281-1142-ND 281-1142-NDR 281-1142 2266-1919650000 SL 3.5/135/16 BK SL 3.50/16/135F 4.5SN BK BX 164395

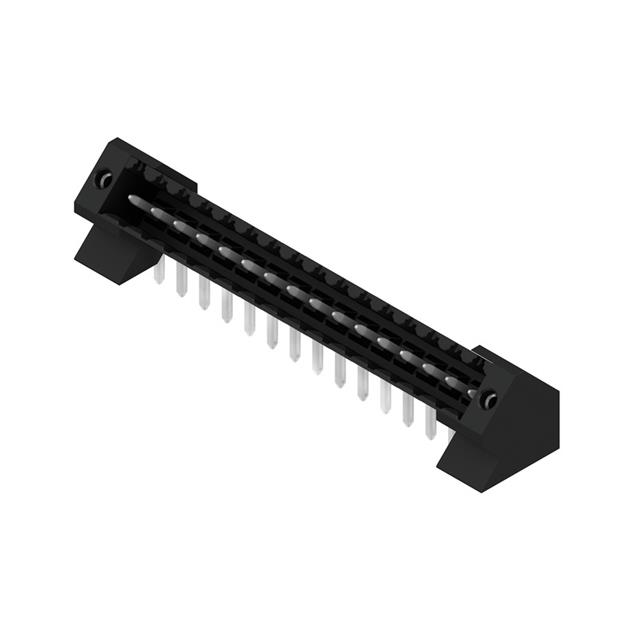

Description	TERM BLOCK HDR 16POS 3.5MM
Detailed Description	16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 135° Through Hole
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Features		Mating Flange
Color		Black
Mounting Type		Through Hole
Number of Positions		16
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-20°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		16
Contact Material		Copper Alloy
Header Orientation		135°
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.177" (4.50mm)
Insulation Height		0.512" (13.00mm)
Current - UL		10 A
Voltage - IEC		125 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
