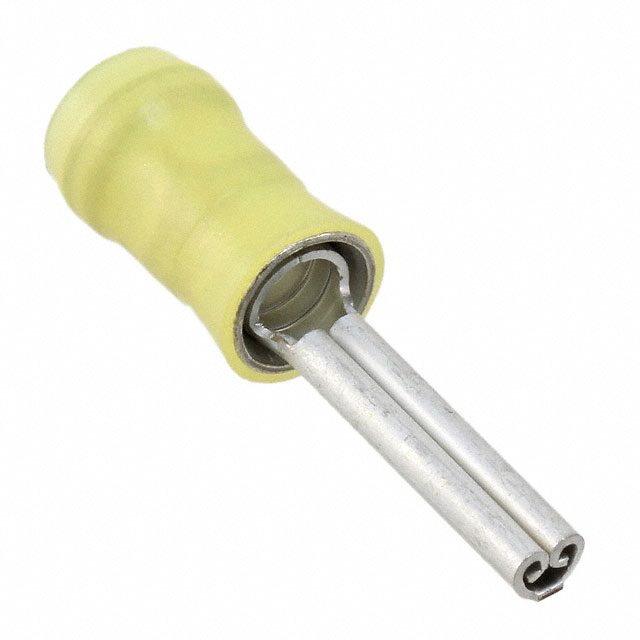

160404-2

160404-2

Part Number	160404-2
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A139145-ND -486098-000-SI-ND 486098-000-ND -486098-000-SI -486098-000-LSI A139145 486098-000 -160404-2-SI 160404-2-ND
Description	CONN WIRE PIN TERM 10-12AWG PIDG
Detailed Description	Wire Pin Terminal Connector 10-12 AWG (6.0~4.0mm²) PIDG Crimp
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals Wire Pin Connectors
Manufacturer		TE Connectivity AMP Connectors
Series		PIDG
Packaging		Bulk
Part Status		Active
Features		Serrated Termination
Contact Finish		Tin
Color		Yellow
Wire Gauge		10-12 AWG (6.0~4.0mm²)
Insulation		Insulated
Pin Diameter		0.110" (2.79mm)
Length - Overall		1.319" (33.50mm)
Termination		Crimp
Length - Pin		0.598" (15.19mm)
Material - Insulation		Poly-Vinyl Chloride (PVC)
Contact Material		Copper
Insulation Diameter		0.248" (6.30mm)
Length - Termination		0.720" (18.30mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		160404-2
Datasheets		160404-2 Statement of Compliance
Datasheets		160404 Drawing 06/Jan/2016
Datasheets		160404 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 3318

Can ship immediately.
