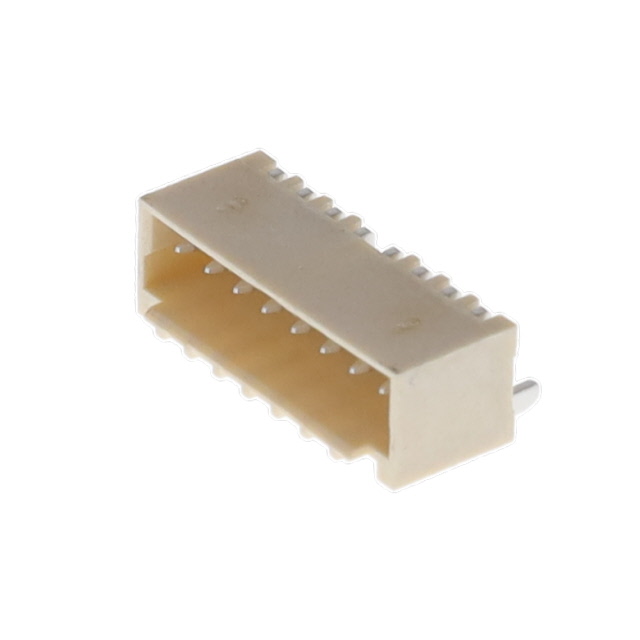

15SH-B-08-TR-SMT-T/R _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	15SH-B-08-TR-SMT-T/R
Manufacturer	Adam Tech
Other Part Numbers	2057-15SH-B-08-TR-SMT-T/RTR-ND 2057-15SH-B-08-TR-SMT-T/RCT-ND 2057-15SH-B-08-TR-SMT-T/RDKR-ND 2057-15SH-B-08-TR-SMTCT-ND 2057-15SH-B-08-TR-T/RTR 2057-15SH-B-08-TR-SMT-T/RCT 2057-15SH-B-08-TR-SMT-T/RDKR 15SH-B-08-TR-SMT 2057-15SH-B-08-TR-SMTTR-ND 2057-15SH-B-08-TR-S 2057-15SH-B-08-TR-T/RCT-ND 2057-15SH-B-08-TR-SMTTR 2057-15SH-B-08-TR-T/RDKR-ND 2057-15SH-B-08-TR 2057-15SH-B-08-TR-SMT-T/R 2057-15SH-B-08-TR-SMTDKR 2057-15SH-B-08-TR-T/RCT 2057-15SH-B-08-TR-T/RTR-ND 2057-15SH-B-08-TR-SMTCT 2057-15SH-B-08-TR-SMT-T/R-ND 2057-15SH-B-08-TR-T/RDKR 15SH-B-08-TR-T/R 2057-15SH-B-08-TR-SMT-T/RTR 2057-15SH-B-08-TR-SMTDKR-ND
Description	CONN HEADER SMD R/A 8POS 1.5MM
Detailed Description	Connector Header Surface Mount, Right Angle 8 position 0.059" (1.50mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Adam Tech
Series		15SH
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Connector Type		Header
Voltage Rating		350VAC/DC
Current Rating (Amps)		3A (AC/DC)
Mounting Type		Surface Mount, Right Angle
Number of Positions		8
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-25°C ~ 85°C
Contact Type		Male Pin
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Natural
Pitch - Mating		0.059" (1.50mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Height		0.175" (4.45mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Thermoplastic, Glass Filled

RESOURCE TYPE		LINK
Datasheets		15SH-B-08-TR-SMT-T/R
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
