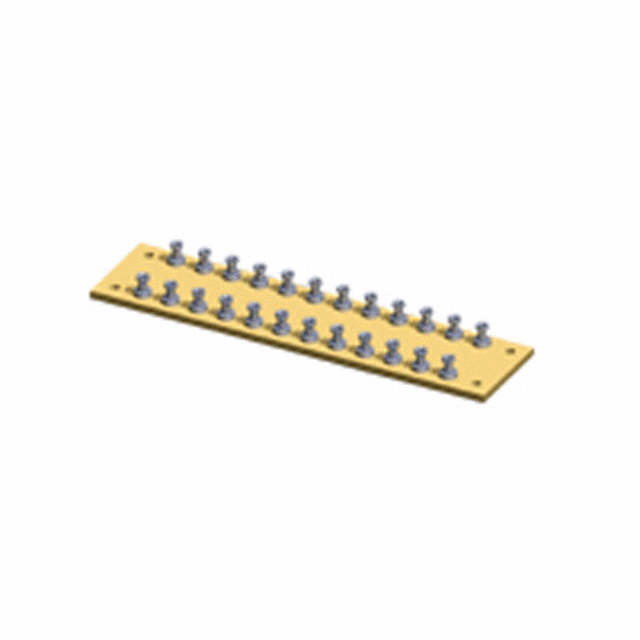

15508

15508

Part Number	15508
Manufacturer	Keystone Electronics Corp.
Other Part Numbers	36-15508-ND 15508K 15508K-ND 15508K-NDR 36-15508
Description	TURRET BOARD 38POS 0.218" SINGLE
Detailed Description	38 Position Turret Board 0.218" (5.54mm) Turret, Single End, Single Turret, Hollow
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Strips and Turret Boards
Manufacturer		Keystone Electronics Corp.
Series
Packaging		Bulk
Part Status		Active
Features		Miniature Strip
Number of Positions		38
Pitch		0.218" (5.54mm)
Type		Turret Board
Terminal Type		Turret, Single End, Single Turret, Hollow
Board Size		4.625" L x 0.750" W x 0.062" H (117.50mm x 19.10mm x 1.57mm)
Row Spacing		0.500" (12.70mm)
Material - Board		Glass Epoxy
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		15508
Datasheets		RoHS Certificate
Datasheets		Keystone Electronics REACH
Datasheets		Keystone CA Prop65
Datasheets		15508 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
