1546307-2

Part Number
1546307-2
Manufacturer TE Connectivity AMP Connectors
Other Part Numbers
A112363-ND
2266-1546307-2
A112363
3937-1546307-2
1546307-2-ND

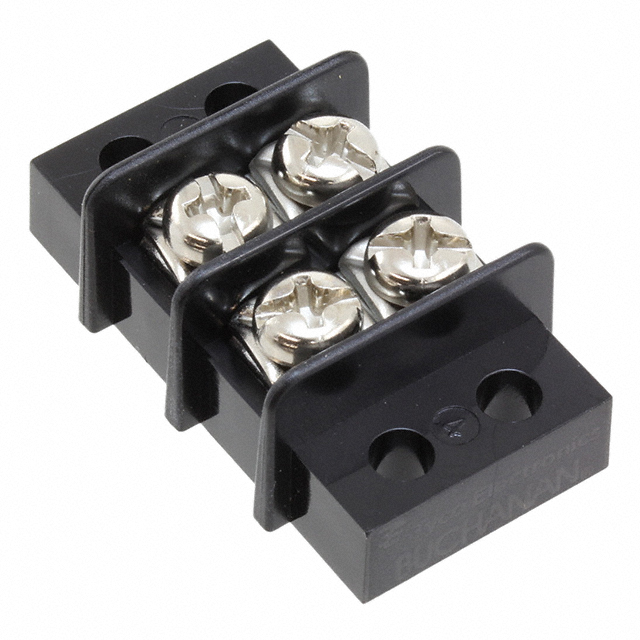

Description CONN BARRIER STRIP 2CIRC 0.375"
Detailed Description 2 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity AMP Connectors
Series
Buchanan
Packaging
Bulk
Part Status Active
Features Flange
Color Black
Voltage Rating 300V
Current Rating (Amps) 20A
Wire Gauge 12-22 AWG
Pitch 0.375" (9.53mm)
Number of Rows 2
Terminal Block Type Barrier Block
Top Termination Screws with Captive Plate
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Number of Circuits 2
Number of Wire Entries 4

Documents & Media

RESOURCE TYPE LINK
Datasheets 1546307-2
Datasheets 1546307-2 Statement of Compliance
Datasheets 1546307-2.pdf

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status RoHS Compliant

In Stock: 8882

Can ship immediately.
