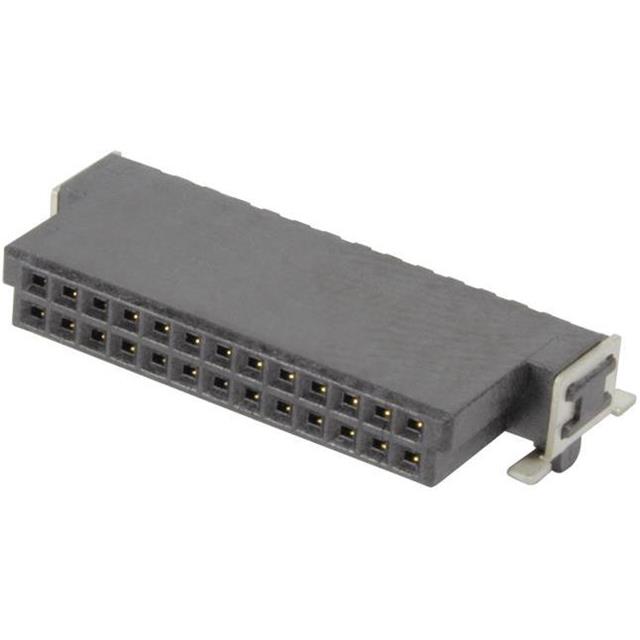

15250142601000 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	15250142601000
Manufacturer	HARTING
Other Part Numbers	1195-15250142601000TR-ND 8536694040 1195-15250142601000 1195-15250142601000TR 1195-15250142601000-ND
Description	HAR-FLEX ANGLED FEMALE, 14PIN, P
Detailed Description	14 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		HARTING
Series		har-flex®
Packaging		Bulk
Part Status		Active
Features		Board Guide, Solder Retention
Connector Type		Receptacle
Mounting Type		Surface Mount, Right Angle
Number of Positions		14
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Height		0.146" (3.70mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2
