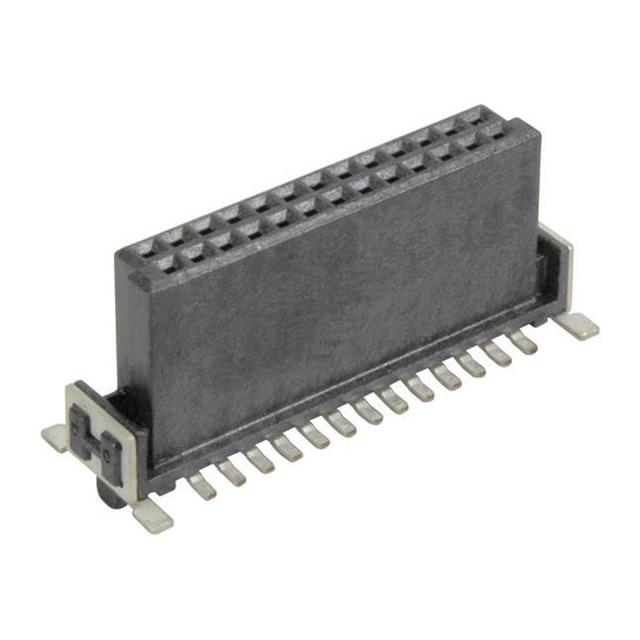

15220342601000 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	15220342601000
Manufacturer	HARTING
Other Part Numbers	1195-15220342601000TR-ND 1195-15220342601000-ND 1195-15220342601000 1195-15220342601000TR 8536694040
Description	HAR-FLEX STRAIGHT FEMALE 9.05MM,
Detailed Description	34 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		HARTING
Series		har-flex®
Packaging		Bulk
Part Status		Active
Features		Solder Retention
Connector Type		Receptacle
Mounting Type		Surface Mount
Number of Positions		34
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Mated Stacking Heights		9.05mm
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		15220342601000
Datasheets		15220342601000 Prod Declaration Cert
Datasheets		updated specifications and drawings 01/SEP/2023
