142-0701-556 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	142-0701-556
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	J10156-ND J10156 3937-142-0701-556 1420701556

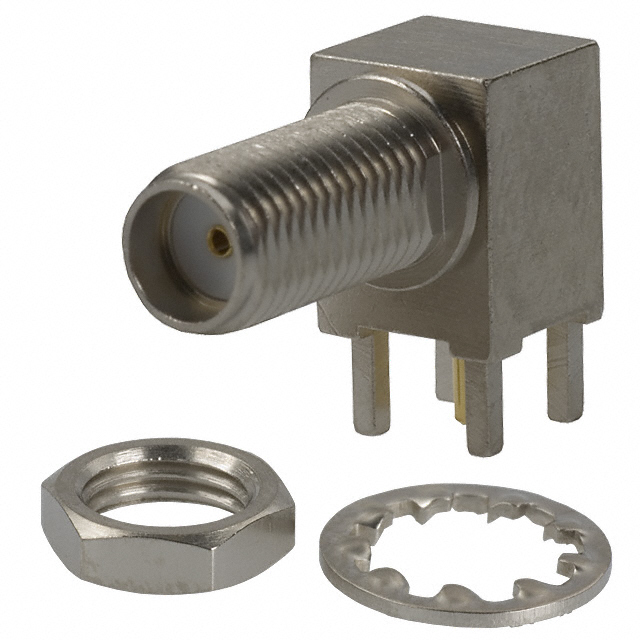

Description	CONN SMA JACK R/A 50 OHM PCB
Detailed Description	SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	9 weeks

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount, Through Hole, Right Angle
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		18 GHz
Number of Ports		1
Voltage Rating		335 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
