138-4416-007 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	138-4416-007
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	J842-ND 3937-138-4416-007 J842
Description	CONN N PLUG STR 50 OHM CRIMP
Detailed Description	N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Crimp or Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-8, 213
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.15dB
Fastening Type		Threaded

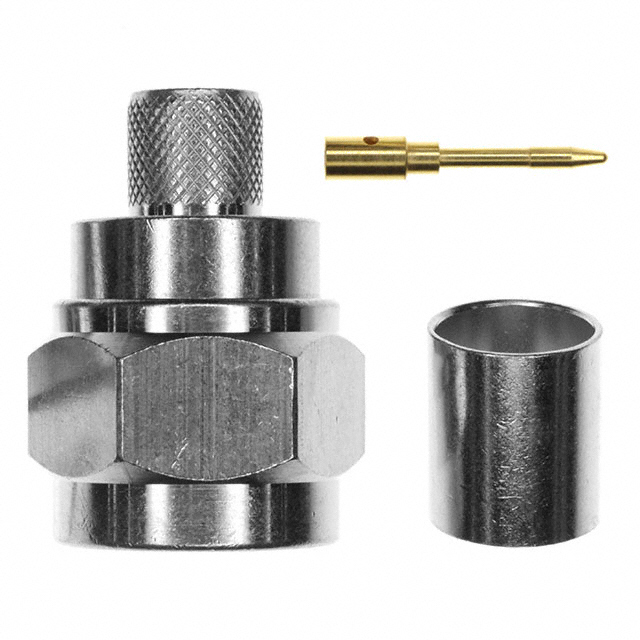

Includes		3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Connector Style		N Type
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Tri-Alloy
Center Contact Plating		Gold
Frequency - Max		11 GHz
Number of Ports		1
Voltage Rating		1000 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
