134106 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	134106
Manufacturer	Connex (Amphenol RF)
Other Part Numbers	ARF2958-ND 3937-134106 134106-ND ARF2958
Description	CONN QMA JACK STR 50OHM SOLDER
Detailed Description	QMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Connex (Amphenol RF)
Series
Packaging		Bag
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount
Cable Group		RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating Temperature		-40°C ~ 85°C
Fastening Type		Snap-On

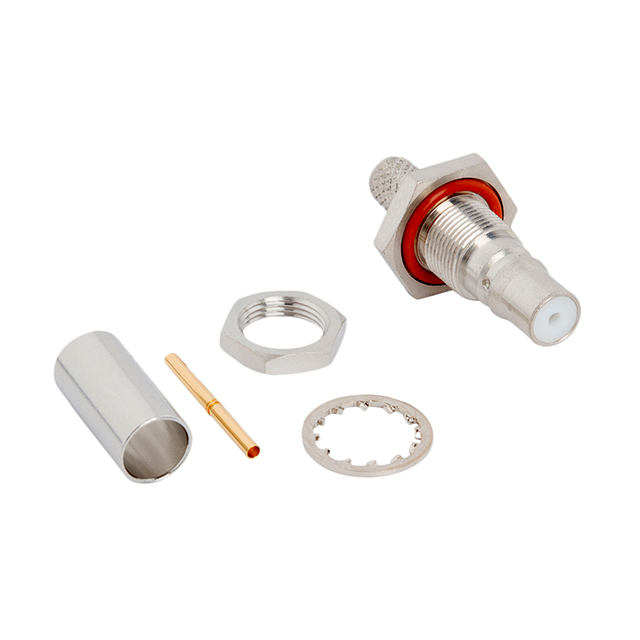

Includes		5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Connector Style		QMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Brass
Housing Color		Silver
Mating Cycles		100
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		White Bronze
Center Contact Plating		Gold
Frequency - Max		11 GHz
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		134106

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

Can ship immediately.
