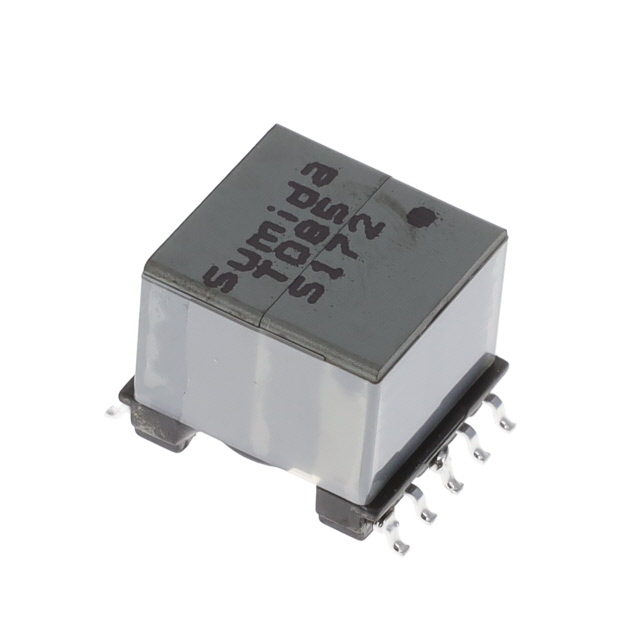

13324-T085

13324-T085

Part Number	13324-T085
Manufacturer	Sumida Corporation
Other Part Numbers	308-2396-2-ND 308-2396-1-ND 308-2396-6-ND 308-2396-6 308-2396-1 308-2396-2
Description	XFMR 40UH SMD
Detailed Description	For SMPS Transformer 1500Vrms Isolation Surface Mount
Manufacturer Standard Lead Time	29 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Switching Converter, SMPS Transformers
Manufacturer		Sumida Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Size / Dimension		0.591" L x 0.531" W (15.00mm x 13.50mm)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Voltage - Isolation		1500Vrms
Voltage - Primary		36 ~ 75V
Footprint		0.709" L x 0.531" W (18.00mm x 13.50mm)
Height - Seated (Max)		0.492" (12.50mm)
Inductance @ Frequency		40µH @ 100kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 61

Can ship immediately.
