133-8701-201 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	133-8701-201
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	J649-ND J649 1338701201 3937-133-8701-201

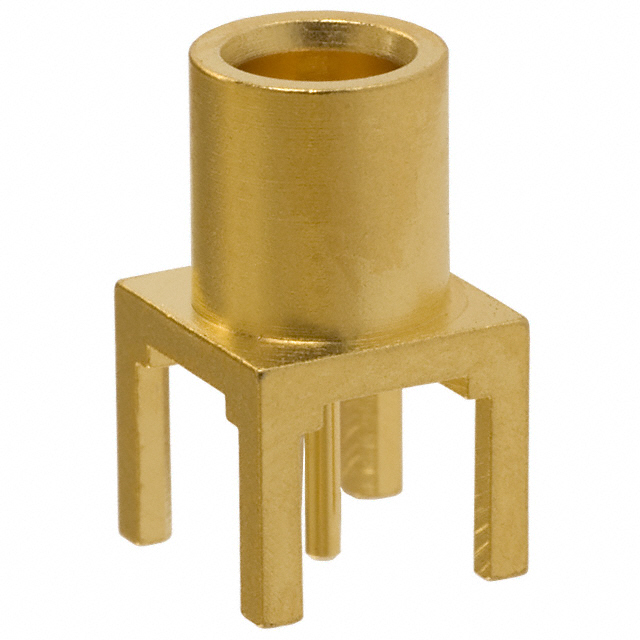

Description	CONN MCX JACK STR 75 OHM PCB
Detailed Description	MCX Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		75 Ohms
Mounting Type		Panel Mount, Through Hole
Operating Temperature		-65°C ~ 165°C
Fastening Type		Snap-On
Connector Style		MCX
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		6 GHz
Number of Ports		1
Voltage Rating		335 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
