Part Number |
13282-18SG-331
|
---|---|
Manufacturer | Conxall/Switchcraft |
Other Part Numbers |
SC2898-ND
13282-18SG-331-ND
Q1801660
SC2898
|
Description | CONN PLUG FMALE 18P SOLDER CUP |

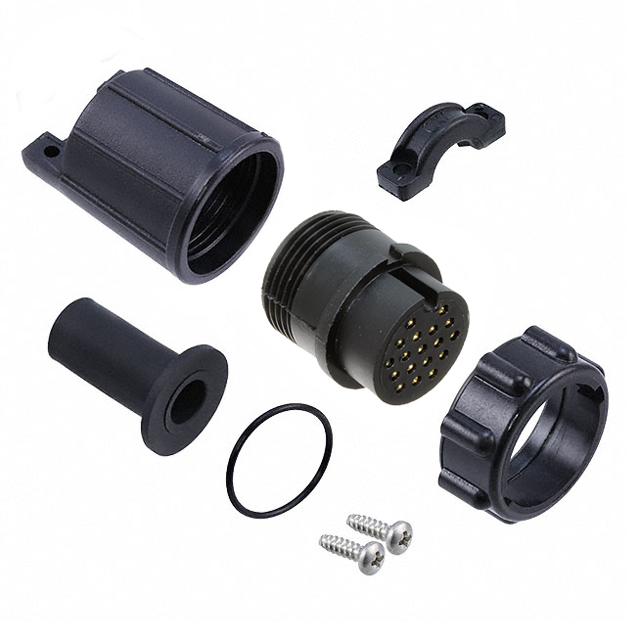

Detailed Description | 18 Position Circular Connector Plug, Female Sockets Solder Cup |
Manufacturer Standard Lead Time | 12 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Conxall/Switchcraft | |
Series |
Maxi-Con-X®
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Features | Backshell, Cable Clamp | |
Connector Type | Plug, Female Sockets | |
Color | Black | |
Voltage Rating | 600V | |
Mounting Type | Free Hanging (In-Line) | |
Shielding | Unshielded | |
Number of Positions | 18 | |
Orientation | Keyed | |
Operating Temperature | -40°C ~ 115°C | |
Fastening Type | Bayonet Lock | |
Termination | Solder Cup | |
Ingress Protection | Weathertight | |
Cable Opening | 0.310" ~ 0.380" (7.87mm ~ 9.65mm) | |
Contact Material | Brass | |
Contact Finish - Mating | Gold | |
Shell Material | Polyamide (PA), Nylon | |
Backshell Material, Plating | Polyamide (PA), Nylon | |
Primary Material | Plastic |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 13282-18SG-331 | |
Datasheets | Conxall RoHS Cert | |
Datasheets | Switchcraft RoHS Cert |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
