132255-11 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	132255-11
Manufacturer	Connex (Amphenol RF)
Other Part Numbers	ARF2528-ND 13225511 3937-132255-11 132255-11-ND ARF2528

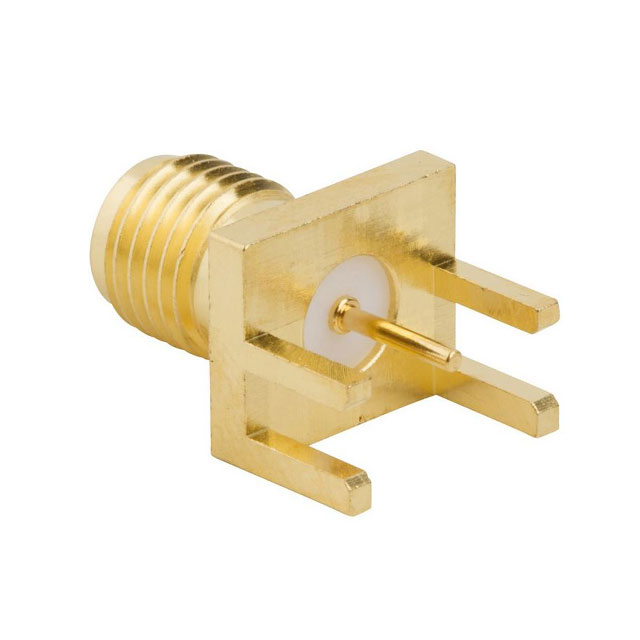

Description	CONN SMA RCPT STR 50OHM EDGE MNT
Detailed Description	SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Connex (Amphenol RF)
Series
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Board Edge, End Launch
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		18 GHz
Number of Ports		1
Voltage Rating		500 V

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
