131-8404-006 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	131-8404-006
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	131-8404-006-ND 3937-131-8404-006 Q816885

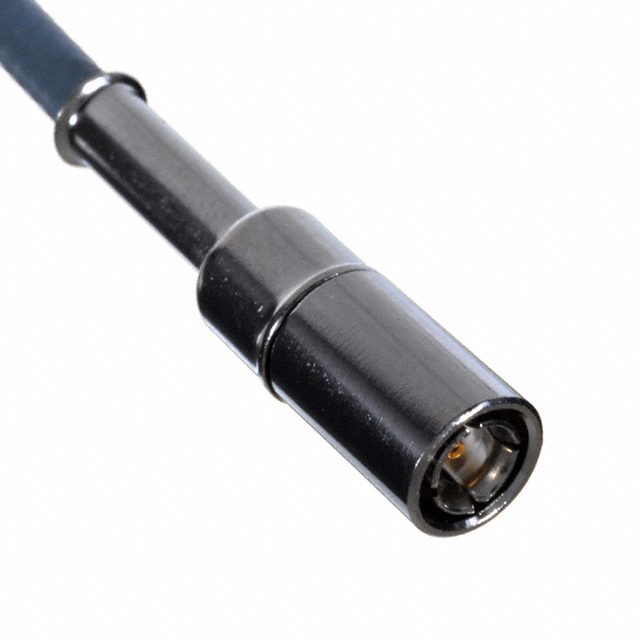

Description	CONN MINI SMB PLUG STR 75 OHM
Detailed Description	SMB, Mini Connector Plug, Female Socket 75 Ohms Free Hanging (In-Line) Crimp or Solder
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Socket
Contact Termination		Crimp or Solder
Impedance		75 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-179DS, 187DS
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.3dB
Fastening Type		Snap-On
Includes		2 pcs - 1 Connector, 1 Sleeve
Connector Style		SMB, Mini
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		2 GHz
Number of Ports		1
Voltage Rating		335 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
