131-1404-116 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	131-1404-116
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	J815-ND J815 1311404116 3937-131-1404-116
Description	CONN SMB PLUG R/A 50OHM SOLDER
Detailed Description	SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		RG-179DS, 187DS, 188DS, 316DS
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.6dB
Fastening Type		Snap-On

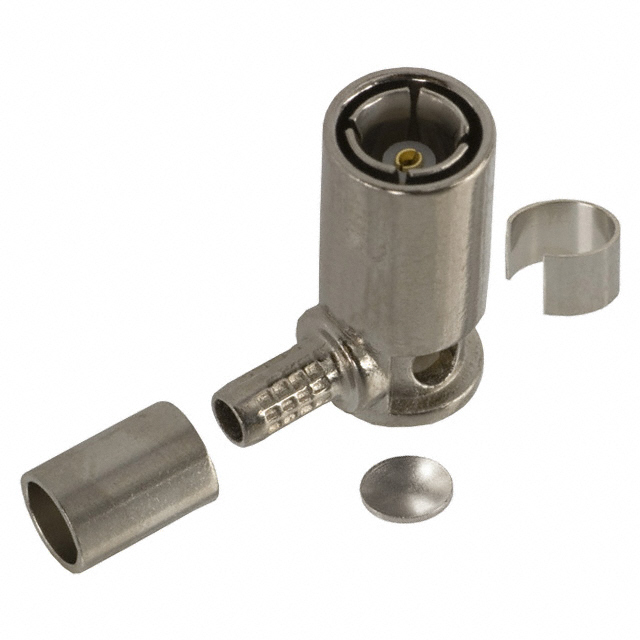

Includes		4 pcs - 1 Connector, 1 Cover Ring, 1 End Cap, 1 Sleeve
Connector Style		SMB
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Zinc
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		335 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
