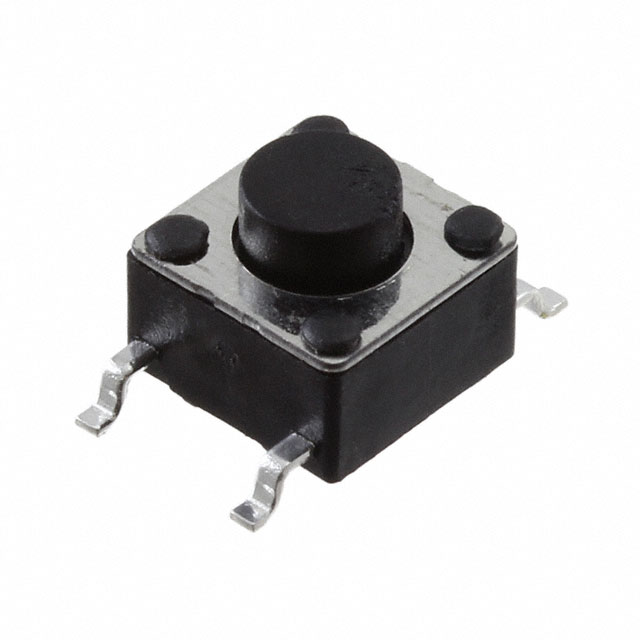

1301.9315.24

1301.9315.24

Part Number	1301.9315.24
Manufacturer	SCHURTER
Other Part Numbers	486-3861-2-ND 486-3861-1-ND 486-3861-6-ND 486-3861-2 486-3861-6 1301.9315.24-ND 486-3861-1
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Tactile Switches
Manufacturer		SCHURTER
Series		LSH
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Tactile Feedback
Mounting Type		Surface Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-20°C ~ 70°C
Termination Style		Gull Wing
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 12VDC
Actuator Type		Standard
Operating Force		160gf
Outline		6.00mm x 6.00mm
Ingress Protection		IP40
Actuator Height off PCB, Vertical		5.00mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1301.9315.24

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 197874

Can ship immediately.
